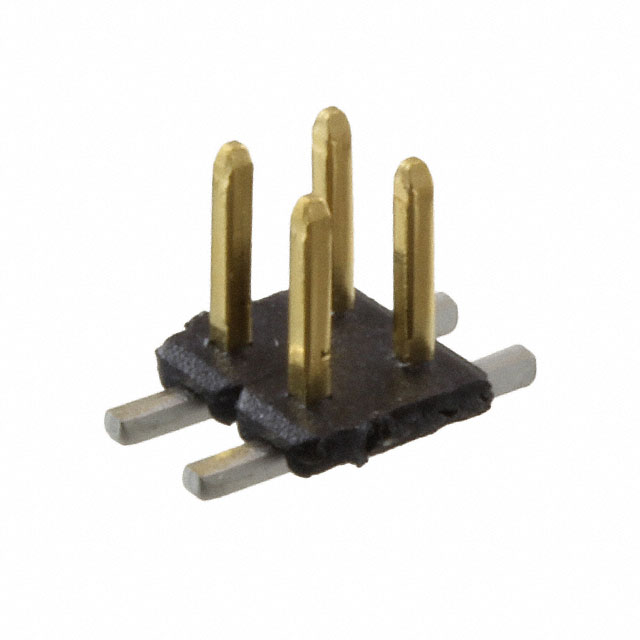

5-966926-2
Or copy the link below:
- Mfr.Part #
- 5-966926-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 2MM
- Stock
- 1,690
- In Stock ：
- 1,690
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Reference Standard :
- UL
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Termination :
- Solder
- Packaging :
- Tape and Reel (TR)
- Insulation Height :
- 0.035 0.90mm
- Housing Material :
- Thermoplastic
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Surface Mount
- Contact Current Rating :
- 1A
- Style :
- Board to Board or Cable
- Reliability :
- COMMERCIAL
- Voltage - Rated :
- 250VAC
- Plating Thickness :
- 31μin
- Series :
- AMPMODU
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Operating Temperature :
- -40°C~105°C
- Shrouding :
- Unshrouded
- Factory Lead Time :
- 22 Weeks
- JESD-609 Code :
- e3
- Contact Length - Mating :
- 0.136 3.45mm
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.079 (2.00mm)
- PCB Mount Retention :
- Without
- Approval Agency :
- UL
- ELV :
- Compliant
- Insulation Color :
- Black
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- ECCN Code :
- EAR99
- Fastening Type :
- Push-Pull
- Stackable :
- yes
- Contact Material :
- Brass
- Published :
- 2015
- Number Of PCB Rows :
- 2
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Mating Contact Pitch :
- 0.079 inch
- Orientation :
- Vertical
- Contact Shape :
- Square
- Connector Type :
- Header, Breakaway
- Number of Positions :
- 4
- Mating Post Length :
- 3.4544mm
- Operating Supply Voltage :
- 200V
- Pitch - Mating :
- 0.079 2.00mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Type :
- Male Pin
- Feature :
- Pick and Place
- Total Number of Contacts :
- 4
- Number of Conductors :
- ONE
- Insulation Resistance :
- 1GOhm
- Contact Finish - Mating :
- Gold
- Datasheets
- 5-966926-2
AMPMODU Series 2-Row Header, Breakaway Solder Brass Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 4-Position Board to Board or Cable 0.035 0.90mm Height
5-966926-2 Overview
The product comes in a package of Header, Breakaway.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU Series.It is more powerful in many ways due to its Pick and Place feature.Its operating supply voltage is 200V.It operates at an operating temperature of -40°C~105°C.
5-966926-2 Features
AMPMODU series
5-966926-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-966926-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
