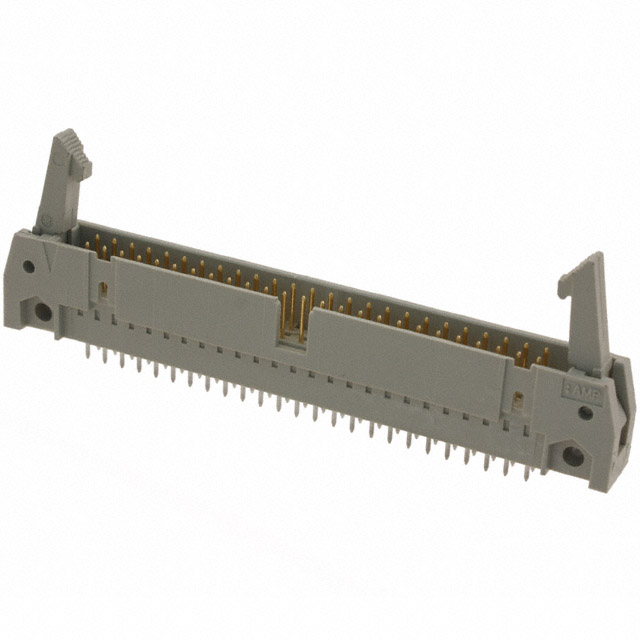

5-828590-0
Or copy the link below:
- Mfr.Part #
- 5-828590-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 50POS 2.54MM
- Stock
- 4,494
- In Stock ：
- 4,494
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 2
- Number of Conductors :
- ONE
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- Unknown
- Fastening Type :
- Latch Lock/Eject Hooks
- Option :
- GENERAL PURPOSE
- Depth :
- 8.8mm
- Orientation :
- Vertical
- Mating Contact Pitch :
- 0.1 inch
- Insulation Resistance :
- 1000000000Ohm
- Packaging :
- Bulk
- Polarization Key :
- CTR W/GUIDE SLOTS
- Insulation Material :
- Polyester, Glass Filled
- Plating Thickness :
- 31μin
- Contact Material :
- Brass
- Reliability :
- COMMERCIAL
- Contact Gender :
- Male
- Pitch - Mating :
- 0.100 2.54mm
- IEC Conformance :
- No
- Body Breadth :
- 0.346 inch
- Insulation Height :
- 0.346 8.80mm
- Contact Plating :
- Gold, Tin
- ECCN Code :
- EAR99
- Lead Length :
- 3.1mm
- Filter Feature :
- No
- Factory Lead Time :
- 8 Weeks
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- MIL Conformance :
- No
- Number of Positions Loaded :
- All
- Number of Positions :
- 50
- Connector Type :
- Header
- Rated Current (Signal) :
- 1A
- Overall Contact Length :
- 0.652 16.56mm
- Contact Length - Mating :
- 0.246 6.25mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Keying Slot, Mounting Flange
- Mount :
- Through Hole
- Style :
- Board to Cable/Wire
- Reference Standard :
- UL, CSA
- Radiation Hardening :
- No
- Dielectric Withstanding Voltage :
- 1000VAC V
- Mounting Type :
- Through Hole
- Housing Material :
- Thermoplastic
- Operating Temperature (Min) :
- -65°C
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Number Of PCB Rows :
- 2
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Termination :
- Solder
- Length :
- 82.2mm
- Lead Pitch :
- 2.54mm
- Additional Feature :
- LATCHED
- Shrouding :
- Shrouded - 4 Wall
- UL Flammability Code :
- 94V-0
- Insulation Color :
- Gray
- PCB Contact Pattern :
- RECTANGULAR
- Contact Length - Post :
- 0.118 3.00mm
- Operating Temperature (Max) :
- 105°C
- Contact Shape :
- Circular
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Series :
- AMP-Latch
- Published :
- 2006
- HTS Code :
- 8536.69.40.40
- Color :
- Grey
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Datasheets
- 5-828590-0
5-828590-0 Documents
AMP-Latch Series 2-Row Header Solder Brass Bulk Through Hole Gold or Gold-Palladium Polyester, Glass Filled 50-Position Board to Cable/Wire 0.346 8.80mm Height
5-828590-0 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMP-Latch Series.Other features include LATCHED, to name just a few.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.
5-828590-0 Features
AMP-Latch series
5-828590-0 Applications
There are a lot of TE Connectivity AMP Connectors
5-828590-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
