5-794682-4
Or copy the link below:
- Mfr.Part #
- 5-794682-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 3MM
- Stock
- 48,983
- In Stock ：
- 48,983
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Min Operating Temperature :
- -40°C
- Flammability Rating :
- UL94 V-0
- Length :
- 40mm
- Number of Positions Loaded :
- All
- Insulation Color :
- Black
- Max Voltage Rating (AC) :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Signal Positions :
- 0
- Mount :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Depth :
- 8.67mm
- Voltage - Rated :
- 250V
- Housing Color :
- Black
- Contact Length - Post :
- 0.125 3.18mm
- Max Operating Temperature :
- 105°C
- Pitch :
- 3mm
- Number of Positions :
- 24
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Circuit Application :
- Power
- Number of Contacts :
- 24
- Color :
- Black
- Housing Material :
- Nylon
- Insulation Height :
- 0.364 9.25mm
- Factory Lead Time :
- 16 Weeks
- Orientation :
- Vertical
- Termination :
- Solder
- ELV :
- Compliant
- Number of Power Positions :
- 24
- Operating Temperature :
- -40°C~105°C
- Contact Finish - Post :
- Tin
- Radiation Hardening :
- No
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.118 3.00mm
- Contact Resistance :
- 20mOhm
- Contact Material :
- Brass
- Number of Rows :
- 2
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Sealable :
- No
- Width :
- 6.86mm
- Number of Pins :
- 24
- Applications :
- GENERAL PURPOSE
- Packaging :
- Tray
- Contact Retention :
- Without
- Plating :
- Tin
- Published :
- 2008
- Plating Thickness :
- 760 nm
- Operating Supply Voltage :
- 250V
- Series :
- Micro MATE-N-LOK
- Connector Type :
- Header
- Insulation Material :
- Polyamide (PA), Nylon
- Current Rating :
- 5A
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Feature :
- Board Lock
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Style :
- Board to Cable/Wire
- Contact Plating :
- Gold, Tin
- Lead Length :
- 3.18mm
- Contact Shape :
- Square
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Locking Ramp
- Row Spacing - Mating :
- 0.118 (3.00mm)
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 5-794682-4

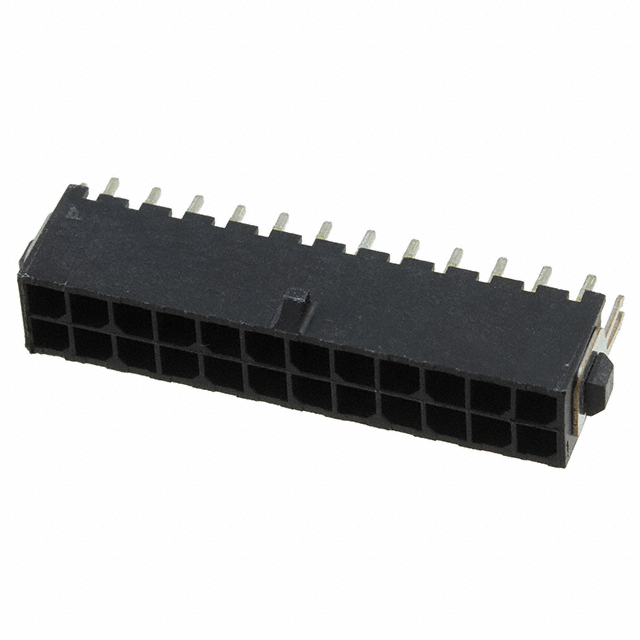

Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 24-Position Board to Cable/Wire 0.364 9.25mm Height
5-794682-4 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Micro MATE-N-LOK Series.Devices with 24 pins are available.You should use it when it's below 105°C.A minimum temperature of -40°C is required for the operation of this device.A possible application for the device is General Purpose.In many ways, its Board Lock feature makes it more powerful.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -40°C~105°C Operating Temperature.
5-794682-4 Features
Micro MATE-N-LOK series
5-794682-4 Applications
There are a lot of TE Connectivity AMP Connectors
5-794682-4 Rectangular Connectors applications.
