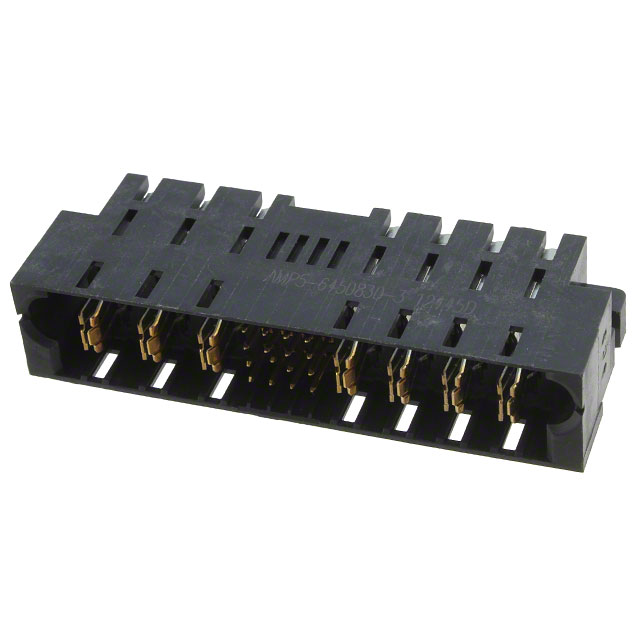

5-6450830-3
Or copy the link below:
- Mfr.Part #
- 5-6450830-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER MULTI-BEAM 23POS PCB
- Stock
- 30,496
- In Stock ：
- 30,496
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Connector Type :
- Header, Male Pins and Blades
- Contact Layout, Typical :
- 16 Signal, 7 Power
- Operating Supply Voltage :
- 60V
- Termination :
- Solder
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Signal Positions :
- 16
- Plating Thickness :
- 3.43μm
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 50A
- Mounting Type :
- Through Hole, Right Angle
- Number of Power Positions :
- 7
- Sealable :
- No
- Connector Style :
- Multi-Beam
- Contact Retention :
- Without
- Contact Current Rating :
- 50A
- Contact Material :
- Copper
- Feature :
- Board Lock, Mating Guide
- Housing Color :
- Black
- Number of Positions :
- 23
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Circuit Application :
- Power
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Contacts :
- 23
- Published :
- 2001
- Number of Rows :
- 4
- Max Operating Temperature :
- 125°C
- Housing Material :
- Thermoplastic
- ELV :
- Compliant
- Contact Plating :
- Tin
- Factory Lead Time :
- 25 Weeks
- Min Operating Temperature :
- -40°C
- Operating Temperature :
- -20°C~105°C
- Row Spacing :
- 2.54 mm
- Series :
- MULTI-BEAM XLE
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 0.100 2.54mm
- Datasheets
- 5-6450830-3
