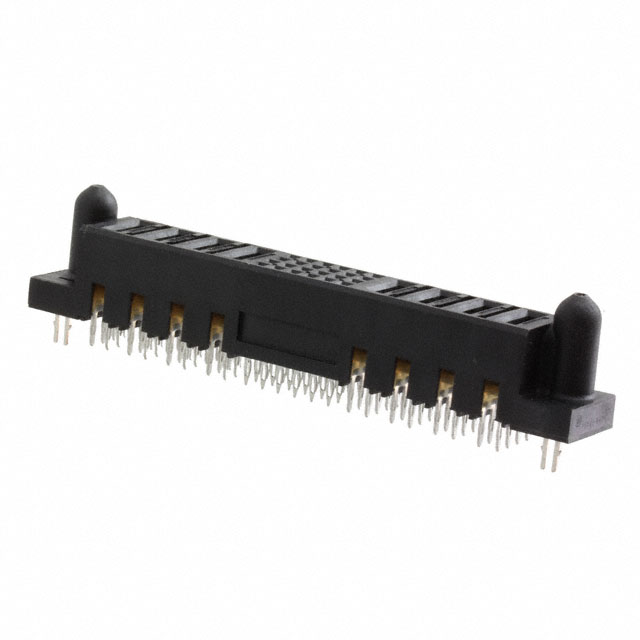

5-6450540-3
Or copy the link below:
- Mfr.Part #
- 5-6450540-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MULTI-BEAM 32POS PCB
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Feature :
- Board Lock, Guide Pin
- Pitch :
- 0.100 2.54mm
- Factory Lead Time :
- 25 Weeks
- Contact Current Rating :
- 42A
- Number of Positions :
- 32
- Number of Signal Positions :
- 24
- Housing Color :
- Black
- Termination :
- Press-Fit
- Row Spacing :
- 2.54 mm
- Max Operating Temperature :
- 105°C
- Connector Style :
- Multi-Beam
- Plating Thickness :
- 3.43μm
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Lead Free :
- Lead Free
- Contact Plating :
- Tin
- Radiation Hardening :
- No
- Current Rating :
- 42A
- Operating Supply Voltage :
- 60V
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Contact Retention :
- Without
- PCB Mounting Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Published :
- 2012
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Housing Material :
- Thermoplastic
- Contact Material :
- Copper
- Operating Temperature :
- -20°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Circuit Application :
- Power
- Orientation :
- Vertical
- Min Operating Temperature :
- -20°C
- Number of Contacts :
- 32
- Contact Layout, Typical :
- 24 Signal, 8 Power
- Number of Rows :
- 4
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Number of Power Positions :
- 8
- Series :
- MULTI-BEAM XL
- Datasheets
- 5-6450540-3
MULTI-BEAM XL Series Receptacle, Female Sockets and Blade Sockets Press-Fit Gold 30.0μin 0.76μm 32 Positions Pitch: 0.100 2.54mm -20°C~105°C Tray Through Hole
5-6450540-3 Overview
A Receptacle, Female Sockets and Blade Sockets package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the MULTI-BEAM XL Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -20°C at all times.A number of features make it more powerful because of its Board Lock, Guide Pin feature.Through Hole mounts the part.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 60V.
5-6450540-3 Features
MULTI-BEAM XL series
5-6450540-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-6450540-3 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
