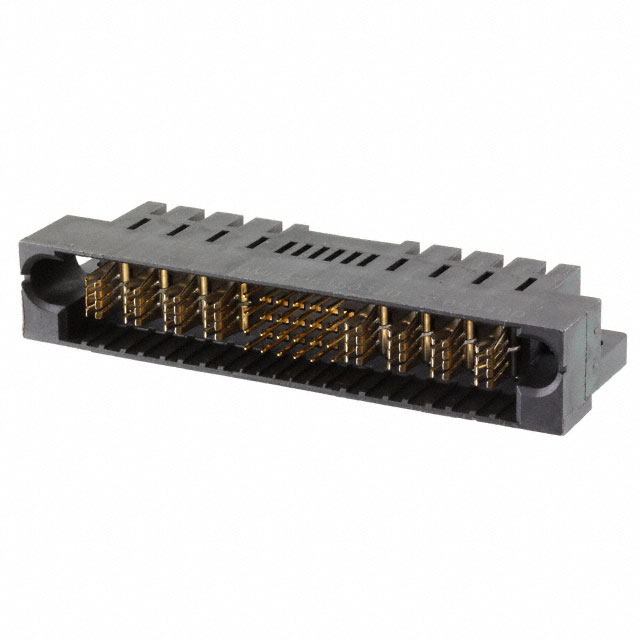

5-6450330-3
Or copy the link below:
- Mfr.Part #
- 5-6450330-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER MULTI-BEAM 32POS PCB
- Stock
- 341
- In Stock ：
- 341
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Pitch :
- 0.100 2.54mm
- Number of Contacts :
- 32
- Max Operating Temperature :
- 105°C
- Number of Rows :
- 4
- Current Rating :
- 42A
- Mounting Type :
- Through Hole, Right Angle
- Lead Free :
- Lead Free
- Orientation :
- RIGHT ANGLE
- Mount :
- Through Hole
- Sealable :
- No
- Min Operating Temperature :
- -20°C
- Circuit Application :
- Power
- Termination :
- Solder
- Series :
- MULTI-BEAM XL
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Tin
- Contact Current Rating :
- 42A
- Feature :
- Mating Guide
- Contact Layout, Typical :
- 24 Signal, 8 Power
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Thickness :
- 1.6002mm
- Number of Signal Positions :
- 24
- Factory Lead Time :
- 25 Weeks
- Operating Temperature :
- -20°C~105°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Positions :
- 32
- Row Spacing :
- 2.54 mm
- Published :
- 2012
- Contact Retention :
- Without
- Flammability Rating :
- UL94 V-0
- Connector Style :
- Multi-Beam
- Connector Type :
- Header, Male Pins and Blades
- Housing Material :
- Thermoplastic
- Operating Supply Voltage :
- 60V
- Number of Power Positions :
- 8
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 3.43μm
- Datasheets
- 5-6450330-3
MULTI-BEAM XL Series Header, Male Pins and Blades Solder Gold 30.0μin 0.76μm 32 Positions Pitch: 0.100 2.54mm -20°C~105°C Tray Through Hole, Right Angle
5-6450330-3 Overview
This product is packaged in a Header, Male Pins and Blades box.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MULTI-BEAM XL Series.Use it below 105°C.A minimum temperature of -20°C must be maintained for the operation of this device.In many ways, Mating Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -20°C~105°C.The Backplane Connector is capable of working with a supply voltage of 60V.
5-6450330-3 Features
MULTI-BEAM XL series
5-6450330-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-6450330-3 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
