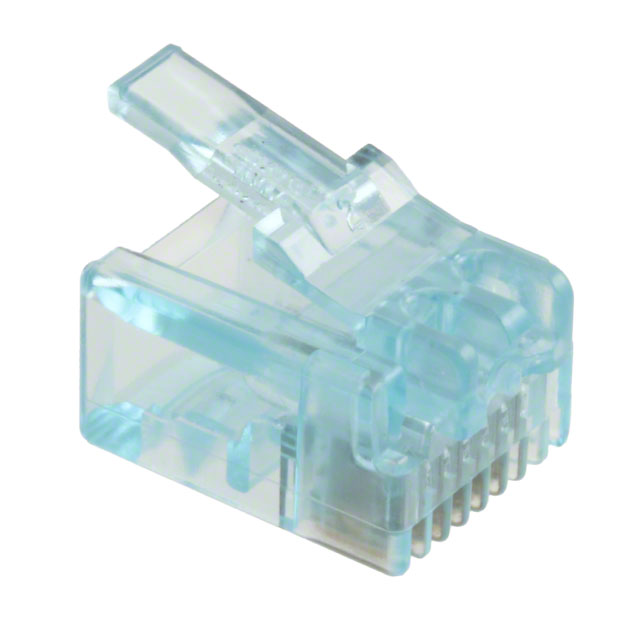

5-557971-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

Empty Shell :

No

Contact Gender :

Male

Rated Current (Signal) :

1.5 A

Withdrawl Force-Min :

22.24 N

Body Depth :

0.53 inch

Dielectric Withstanding Voltage :

1000VAC V

Mixed Contacts :

No

Contact Resistance :

30 mΩ

Plating Thickness :

50u inch

Reach Compliance Code :

Compliant

Connector Type :

TELECOM AND DATACOM CONNECTOR

Reference Standard :

CSA, UL

UL Flammability Code :

94V-0

Filter Feature :

No

IEC Conformance :

No

DIN Conformance :

No

Shell Material :

Polycarbonate

Option :

GENERAL PURPOSE

Body/Shell Style :

PLUG

Additional Feature :

100 ASSEMBLIES PER BOX

Insulator Color :

Blue

Contact Material :

Phosphor Bronze

Number of Ports :

1

Contact Finish Termination :

Gold Flash over Nickel

Total Number of Contacts :

6

Termination Type :

Crimp

Insertion Force-Max :

22.24 N

Reliability :

COMMERCIAL

JESD-609 Code :

e4

Insulation Resistance :

500000000 Ω

ECCN Code :

EAR99

Body Breadth :

0.404 inch

HTS Code :

8536.69.40.30

MIL Conformance :

No

Contact Style :

TELCOM, MODULAR

Durability :

750 Cycles

Pbfree Code :

yes

Mounting Style :

Straight

Mounting Type :

CABLE
