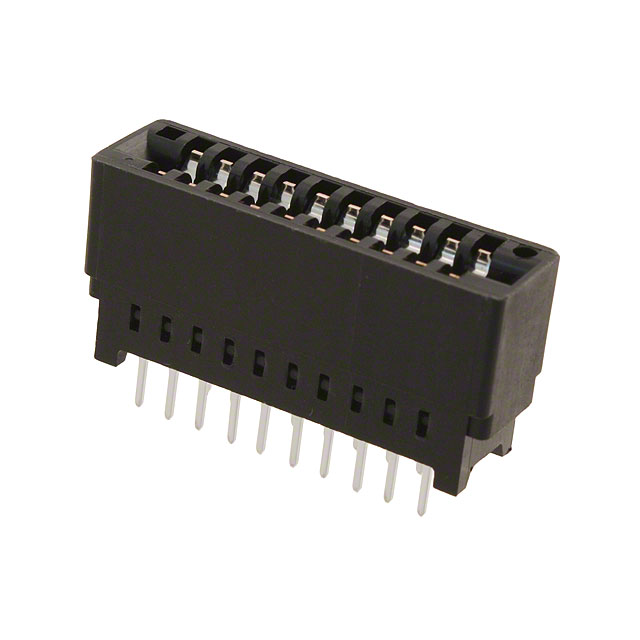

5-5530843-0
Or copy the link below:
- Mfr.Part #
- 5-5530843-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 20POS 0.100
- Stock
- 5,774
- In Stock ：
- 5,774
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Contact Plating :
- Gold, Tin
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Reference Standard :
- UL
- Body Depth :
- 0.55 inch
- Read Out :
- Dual
- Operating Supply Voltage :
- 400V
- Contact Style :
- BELLOWED TYPE
- DIN Conformance :
- No
- Plating Thickness :
- 760 nm
- Flammability Rating :
- UL94 V-0
- Published :
- 2009
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~ 85°C
- Mount :
- Through Hole
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- RECTANGULAR
- ELV :
- Compliant
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Underplate Material :
- Nickel
- Height :
- 15.64mm
- Factory Lead Time :
- 5 Weeks
- Lead Free :
- Lead Free
- Mixed Contacts :
- No
- Contact Material :
- Phosphor Bronze
- Radiation Hardening :
- No
- Width :
- 9.35mm
- UL Flammability Code :
- 94V-0
- Row Spacing :
- 4.85 mm
- Pitch :
- 0.100 2.54mm
- Lead Pitch :
- 2.54mm
- Body/Shell Style :
- Receptacle
- Total Number of Contacts :
- 20
- Series :
- Standard Edge II
- Max Current Rating :
- 3A
- Orientation :
- Vertical
- Insulation Resistance :
- 5000000000Ohm
- Body Breadth :
- 0.368 inch
- Voltage - Rated :
- 400V
- Rated Current (Signal) :
- 3A
- Filter Feature :
- No
- Dielectric Withstanding Voltage :
- 1400VAC V
- Number of Rows :
- 2
- Gender :
- FEMALE
- Card Type :
- Non Specified - Dual Edge
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Number of Conductors :
- ONE
- REACH SVHC :
- No SVHC
- Color :
- Black
- Lead Length :
- 3.18mm
- IEC Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pbfree Code :
- yes
- Current Rating :
- 3A
- Housing Material :
- Polyester
- Contact Pattern :
- RECTANGULAR
- Reliability :
- COMMERCIAL
- Contact Current Rating :
- 3A
- Contact Finish :
- Gold
- Max Voltage Rating (AC) :
- 400V
- Circuit Application :
- Power
- Contact Resistance :
- 10MOhm
- Number of Power Positions :
- 20
- Termination :
- Solder
- Number Of PCB Rows :
- 2
- Connector Type :
- Socket
- Material - Insulation :
- Polyester, Glass Filled
- Length :
- 32mm
- Datasheets
- 5-5530843-0
