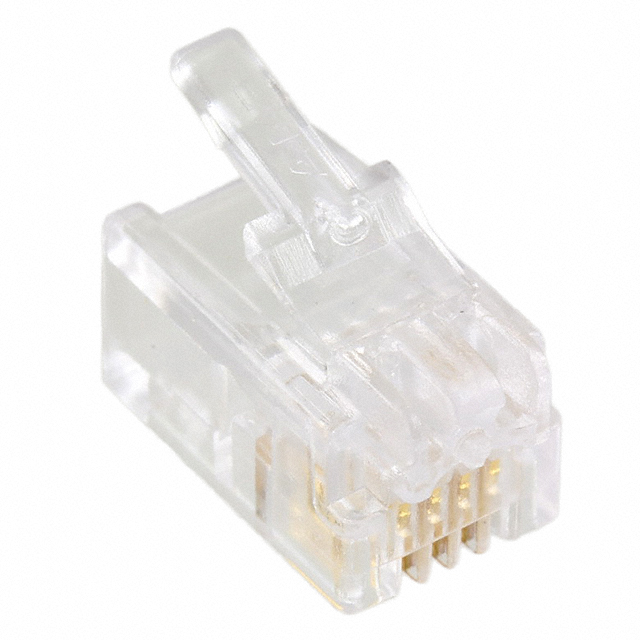

5-556200-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Plugs

Plating Thickness :

50μin

Housing Material :

Polycarbonate (PC)

Current Rating :

1.5A

Housing Color :

Clear

Contact Finish :

Gold

Pbfree Code :

yes

Total Number of Contacts :

4

IEC Conformance :

No

Insulation Resistance :

500000000Ohm

Depth :

13.47mm

Wire Gauge :

24-26 AWG

Gender :

Male

Packaging :

Bulk

MIL Conformance :

No

Durability :

750 Cycles

ECCN Code :

EAR99

Factory Lead Time :

3 Weeks

Connector Type :

PLUG

Wire/Cable Type :

Flat

Width :

8.69mm

Wire Gauge (Max) :

26 AWG

Number of Rows :

1

Termination :

IDC

Max Operating Temperature :

60°C

JESD-609 Code :

e4

Wire Gauge (Min) :

24 AWG

Number of Ports :

1

Contact Finish Thickness :

50.0μin 1.27μm

Contact Material :

Phosphor Bronze

Pitch :

1.02mm

Shielding :

Unshielded

RoHS Status :

RoHS Compliant

Contact Resistance :

30mOhm

Reliability :

COMMERCIAL

Keyed :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-40°C

Length :

0.530 13.46mm

Reference Standard :

UL, CSA

Orientation :

Straight

Voltage - Rated :

150V

Mount :

CABLE

ELV :

Compliant

Number of Positions/Contacts :

4p4c (RJ9, RJ10, RJ22)

Filter Feature :

No

Mixed Contacts :

No

Number of Positions Loaded :

4

DIN Conformance :

No

Ratings :

Cat3

Flammability Rating :

UL94 V-2

Empty Shell :

No

Cable Type :

Flat Oval Cable, Solid Wires

Published :

2005

Contact Style :

TELCOM, MODULAR

Color :

Translucent - Clear
