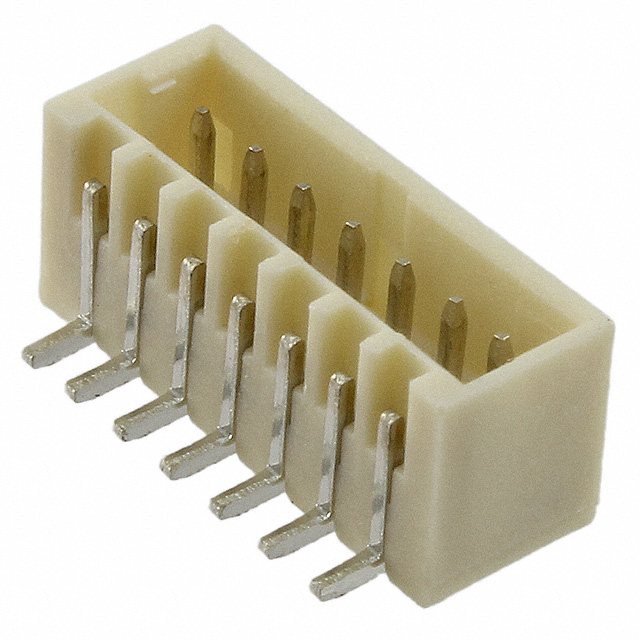

5-1775443-7
Or copy the link below:
- Mfr.Part #
- 5-1775443-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 7POS 1.5MM
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Series :
- High Performance Interconnect (HPI)
- Contact Length - Mating :
- 0.106 2.70mm
- PCB Mount Alignment :
- Without
- Mount :
- Through Hole
- Operating Temperature :
- -55°C~105°C
- Sealable :
- No
- Packaging :
- Tape and Reel (TR)
- Insulation Height :
- 0.197 5.00mm
- PCB Mount Retention :
- Without
- Contact Current Rating :
- 3A
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Published :
- 2009
- Mating Retention :
- Without
- Style :
- Board to Cable/Wire
- Lead Length :
- 1.55mm
- Width :
- 5.9944mm
- Number of Rows :
- 1
- Mating Post Length :
- 2.7mm
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Connector Type :
- Header
- Insulation Material :
- Thermoplastic
- Current Rating (Amps) :
- 3A
- Wire/Cable Type :
- Discrete
- Shrouding :
- Shrouded - 4 Wall
- Current Rating :
- 3A
- Radiation Hardening :
- No
- Housing Color :
- Natural
- Operating Supply Voltage :
- 250V
- Insulation Color :
- Natural
- Height :
- 5mm
- Feature :
- Pick and Place
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Color :
- Natural
- ELV :
- Compliant
- Voltage - Rated :
- 250VAC
- Pitch - Mating :
- 0.059 1.50mm
- Max Operating Temperature :
- 221°C
- Factory Lead Time :
- 14 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 7
- PCB Mounting Orientation :
- Vertical
- Contact Gender :
- Male
- Mounting Type :
- Surface Mount
- Min Operating Temperature :
- -67°C
- Termination :
- Solder
- Length :
- 12mm
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Plating :
- Tin
- Number of Positions :
- 7
- Contact Type :
- Male Pin
- Lead Free :
- Lead Free
- Contact Finish - Mating :
- Tin
- RoHS Status :
- RoHS Compliant
- Orientation :
- Vertical
- Contact Shape :
- Square
- Contact Plating :
- Nickel, Tin
- Contact Finish - Post :
- Tin
- Pitch :
- 1.4986mm
- Plating Thickness :
- 2.54μm
- Housing Material :
- Thermoplastic
- Datasheets
- 5-1775443-7
High Performance Interconnect (HPI) Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Thermoplastic 7-Position Board to Cable/Wire 0.197 5.00mm Height
5-1775443-7 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the High Performance Interconnect (HPI) Series.You should use it when it's below 221°C.A minimum temperature of -67°C is required for the operation of this device.A possible application for the device is Automotive, General Purpose, Industrial, Medical.In many ways, its Pick and Place feature makes it more powerful.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -55°C~105°C Operating Temperature.
5-1775443-7 Features
High Performance Interconnect (HPI) series
5-1775443-7 Applications
There are a lot of TE Connectivity AMP Connectors
5-1775443-7 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
