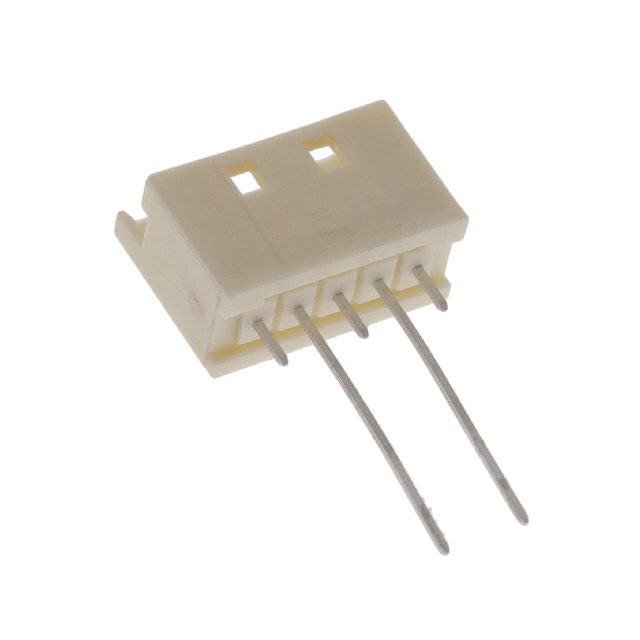

5-1747072-5
Or copy the link below:
- Mfr.Part #
- 5-1747072-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 2.5MM
- Stock
- 4,440
- In Stock ：
- 4,440
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Series :
- Grace Inertia, GIC
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- MIL Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Plating :
- Gold
- Number of Positions :
- 5
- Pitch - Mating :
- 0.098 2.50mm
- Factory Lead Time :
- 18 Weeks
- Current Rating (Amps) :
- Varies by WireGAuge
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 300 nm
- ELV :
- Compliant
- Operating Supply Voltage :
- 50V
- PCB Thickness :
- 1.6002mm
- Orientation :
- Vertical
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Contact Current Rating :
- 3A
- Contact Material :
- Brass
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Type :
- Male Pin
- Contact Plating :
- Gold, Tin
- Underplate Material :
- Nickel
- Height :
- 17.9832mm
- Published :
- 2009
- Applications :
- GENERAL PURPOSE
- Insulation Color :
- Natural
- Housing Material :
- Nylon
- PCB Mount Retention :
- Without
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Latch Holder
- Mount :
- Through Hole
- Packaging :
- Tape and Reel (TR)
- Contact Style :
- Straight
- Sealable :
- No
- IEC Conformance :
- No
- Width - Tab :
- 700μm
- Length :
- 15mm
- Mounting Type :
- Through Hole
- DIN Conformance :
- No
- Length - Tail :
- 2.8mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- Number of Positions Loaded :
- All
- PCB Mounting Orientation :
- Vertical
- Number of Rows :
- 1
- Contact Finish - Mating :
- Tin
- Total Number of Contacts :
- 5
- Shrouding :
- Shrouded - 4 Wall
- Current Rating :
- 3A
- Operating Temperature :
- -30°C~105°C
- Filter Feature :
- No
- Plating Thickness :
- 800 nm
- UL Flammability Code :
- 94V-0
- Datasheets
- 5-1747072-5
Grace Inertia, GIC Series 1-Row Header Solder Brass Tape & Reel (TR) Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 5-Position Board to Cable/Wire
5-1747072-5 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Grace Inertia, GIC Series.The device may be used for the following applications: General Purpose.It is mounted by Through Hole.Its operating supply voltage is 50V.It operates at an operating temperature of -30°C~105°C.
5-1747072-5 Features
Grace Inertia, GIC series
5-1747072-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-1747072-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
