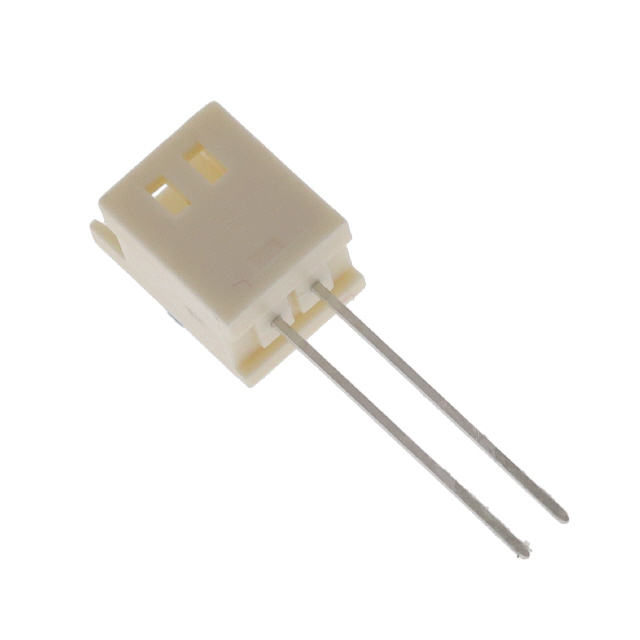

5-1747072-2
Or copy the link below:
- Mfr.Part #
- 5-1747072-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.5MM
- Stock
- 6,480
- In Stock ：
- 6,480
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- GENERAL PURPOSE
- PCB Thickness :
- 1.6002mm
- Operating Supply Voltage :
- 50V
- Number of Rows :
- 1
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Series :
- Grace Inertia, GIC
- Published :
- 2009
- Insulation Color :
- Natural
- Length :
- 7.5mm
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Contact Style :
- Straight
- Connector Type :
- Header
- PCB Mounting Orientation :
- Vertical
- Total Number of Contacts :
- 2
- Pitch - Mating :
- 0.098 2.50mm
- Plating Thickness :
- 800 nm
- Fastening Type :
- Latch Holder
- Contact Plating :
- Gold, Tin
- Contact Current Rating :
- 3A
- Housing Material :
- Nylon
- Length - Tail :
- 2.8mm
- Operating Temperature :
- -30°C~105°C
- Termination :
- Solder
- Shrouding :
- Shrouded - 4 Wall
- Width - Tab :
- 700μm
- PCB Mount Retention :
- Without
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Contact Shape :
- Square
- Current Rating :
- 3A
- Contact Finish - Mating :
- Tin
- Plating :
- Gold
- Underplate Material :
- Nickel
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Filter Feature :
- No
- DIN Conformance :
- No
- Number of Positions :
- 2
- Contact Finish Thickness - Mating :
- 300 nm
- Orientation :
- Vertical
- MIL Conformance :
- No
- Factory Lead Time :
- 20 Weeks
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Current Rating (Amps) :
- Varies by WireGAuge
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Height :
- 17.9832mm
- Style :
- Board to Cable/Wire
- IEC Conformance :
- No
- UL Flammability Code :
- 94V-0
- Datasheets
- 5-1747072-2
Grace Inertia, GIC Series 1-Row Header Solder Brass Tape & Reel (TR) Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 2-Position Board to Cable/Wire
5-1747072-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Grace Inertia, GIC Series, it can be found in this category.A possible application of the device would be General Purpose.In this case, Through Hole mounts the part.The memory's operating supply voltage is 50V.The device is operating at -30°C~105°C Operating Temperature.
5-1747072-2 Features
Grace Inertia, GIC series
5-1747072-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-1747072-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
