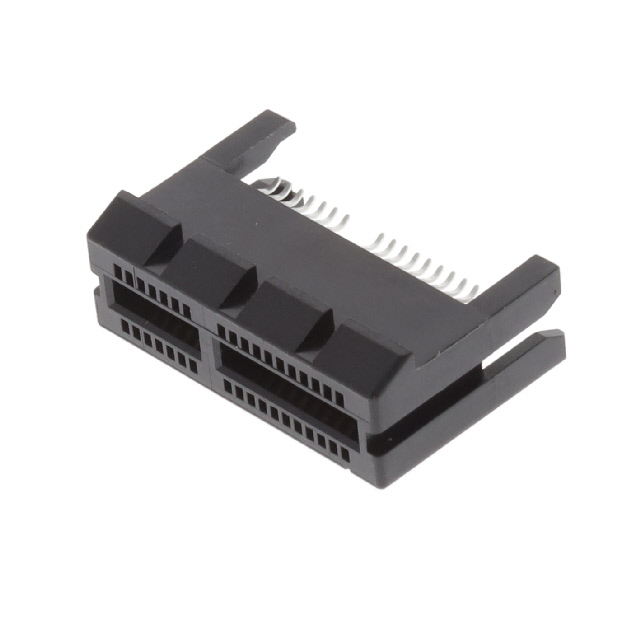

5-1734857-1
Or copy the link below:
- Mfr.Part #
- 5-1734857-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PCI EXP FMALE 36POS 0.039
- Stock
- 5,391
- In Stock ：
- 5,391
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Current Rating :
- 1.1A
- Reference Standard :
- UL
- Circuit Application :
- Signal
- Length :
- 25mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Option :
- GENERAL PURPOSE
- Insulation Resistance :
- 1000000000Ohm
- Additional Feature :
- ROHS COMPL. and STRADDLE MOUNT
- ELV :
- Compliant
- Operating Supply Voltage :
- 50V
- Packaging :
- Tray
- Insertion Force-Max :
- .556 N
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- Contact Pattern :
- RECTANGULAR
- Contact Material :
- Phosphor Bronze
- Number Of PCB Rows :
- 2
- Contact Finish Thickness :
- 1.00μin 0.025μm
- Feature :
- Card Extender, Locking Ramp
- Contact Style :
- BELLOWED TYPE
- Withdrawl Force-Min :
- .0834 N
- Mounting Type :
- Board Edge, Straddle Mount
- Gender :
- FEMALE
- PCB Thickness :
- 1.5748mm
- Body/Shell Style :
- Receptacle
- Number of Rows :
- 2
- Housing Material :
- Polyamide
- Connector Type :
- CARD EDGE CONNECTOR
- Color :
- Black
- Termination Post Length :
- 3.93mm
- Card Thickness :
- 0.062 1.57mm
- Plating Thickness :
- 2.54μm
- Published :
- 2008
- Contact Resistance :
- 30mOhm
- Number of Conductors :
- ONE
- Width :
- 8.7884mm
- Read Out :
- Dual
- Mount :
- Surface Mount
- Contact Plating :
- Gold, Tin
- Weight :
- 2.9g
- Pitch :
- 0.039 1.00mm
- Operating Temperature :
- -40°C~85°C
- Number of Positions :
- 36
- Termination :
- Solder
- Body Breadth :
- 0.343 inch
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 14 Weeks
- Body Depth :
- 0.661 inch
- Height :
- 10.0076mm
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- RoHS Status :
- RoHS Compliant
- Card Type :
- PCI Express™
- Dielectric Withstanding Voltage :
- 500VAC V
- Total Number of Contacts :
- 36
- PCB Contact Pattern :
- RECTANGULAR
- Material - Insulation :
- Polyamide (PA9T), Nylon 9T
- Durability :
- 50 Cycles
- Contact Finish :
- Gold
- DIN Conformance :
- No
- MIL Conformance :
- No
- Orientation :
- Straight
- Datasheets
