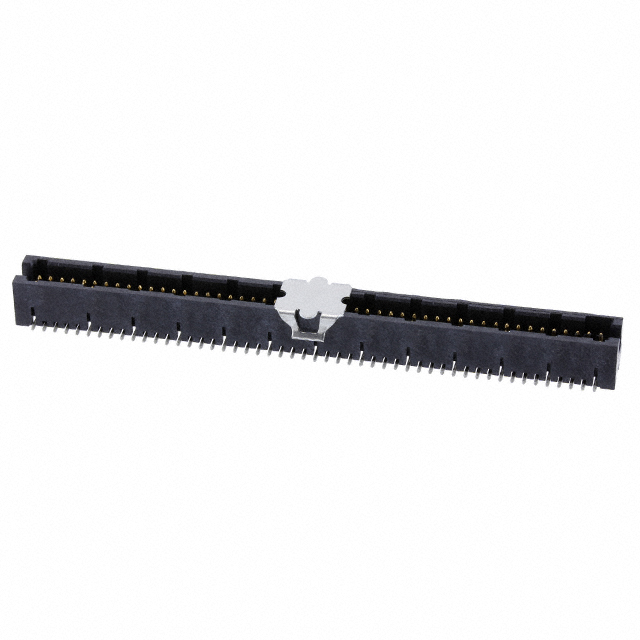

5-147381-9
Or copy the link below:
- Mfr.Part #
- 5-147381-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 100POS 1.27MM
- Stock
- 800
- In Stock ：
- 800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Plating :
- Tin, Gold
- Contact Length - Mating :
- 0.120 3.05mm
- Number of Rows :
- 2
- Lead Length :
- 762μm
- ELV :
- Compliant
- Mating Post Length :
- 3.048mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Dielectric Withstanding Voltage :
- 300VAC V
- Mount :
- Surface Mount
- Insulation Height :
- 0.226 5.74mm
- Series :
- AMPMODU 50/50 Grid
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tape and Reel (TR)
- Polarization Key :
- POLARIZED HOUSING
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Stack Height :
- 6.35mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Mixed Contacts :
- No
- Pitch - Mating :
- 0.050 1.27mm
- Contact Shape :
- Circular
- Applications :
- Automotive, General Purpose, Medical, Military, Telecommunications
- Style :
- Board to Board
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated AC :
- 30V
- Housing Material :
- Polymer
- Filter Feature :
- No
- IEC Conformance :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Material Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- Factory Lead Time :
- 4 Weeks
- Mounting Type :
- Surface Mount
- Reliability :
- COMMERCIAL
- Pbfree Code :
- yes
- Approval Agency :
- CSA
- Feature :
- Board Lock, Pick and Place
- Keyed :
- No
- Number of Positions :
- 100
- Current Rating (Amps) :
- 0.5A per Contact
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Shrouded End Dimension :
- 914.4 μm
- Plating Thickness :
- 30μin
- DIN Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Post :
- Tin
- Termination :
- Solder
- Lead Free :
- Lead Free
- Contact Material :
- Phosphor Bronze
- Contact Finish - Mating :
- Gold
- Current Rating :
- 4A
- Number Of PCB Rows :
- 2
- Underplate Material :
- Nickel
- Insulation Color :
- Black
- Fastening Type :
- Push-Pull
- Published :
- 2006
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Number of Conductors :
- ONE
- Total Number of Contacts :
- 100
- Mating Contact Pitch :
- 0.05 inch
- MIL Conformance :
- No
- Insulation Resistance :
- 5000000000Ohm
- Contact Current Rating :
- 1A
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -65°C~105°C
- Contact Type :
- Male Pin
- Orientation :
- Vertical
- Datasheets
- 5-147381-9
AMPMODU 50/50 Grid Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 100-Position Board to Board 0.226 5.74mm Height
5-147381-9 Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the AMPMODU 50/50 Grid Series.There is the possibility of using the device for Automotive, General Purpose, Medical, Military, Telecommunications.In many ways, Board Lock, Pick and Place makes it more powerful.By Surface Mount, the part is mounted.The operating voltage of this memory is 30V.Operating temperature is set to -65°C~105°C.
5-147381-9 Features
AMPMODU 50/50 Grid series
5-147381-9 Applications
There are a lot of TE Connectivity AMP Connectors
5-147381-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
