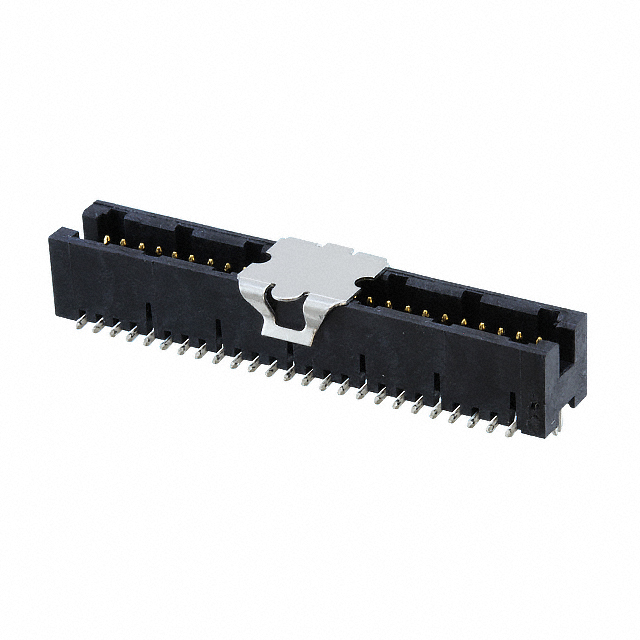

5-147381-5
Or copy the link below:
- Mfr.Part #
- 5-147381-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 50POS 1.27MM
- Stock
- 1,649
- In Stock ：
- 1,649
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Applications :
- Automotive, General Purpose, Medical, Military, Telecommunications
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- MIL Conformance :
- No
- Style :
- Board to Board
- Mixed Contacts :
- No
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- 0.5A per Contact
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- ELV :
- Compliant
- Pitch - Mating :
- 0.050 1.27mm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Shape :
- Circular
- Current Rating :
- 4A
- Fastening Type :
- Push-Pull
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 300VAC V
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Underplate Material :
- Nickel
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Published :
- 2006
- Total Number of Contacts :
- 50
- Contact Finish - Post :
- Tin
- Housing Material :
- Polymer
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 30V
- Plating Thickness :
- 30μin
- Approval Agency :
- CSA
- Contact Plating :
- Tin, Gold
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -65°C~105°C
- IEC Conformance :
- No
- Shrouded End Dimension :
- 914.4 μm
- Number Of PCB Rows :
- 2
- Contact Material :
- Phosphor Bronze
- Mating Contact Pitch :
- 0.05 inch
- Stack Height :
- 6.35mm
- Polarization Key :
- POLARIZED HOUSING
- Mounting Type :
- Surface Mount
- Number of Conductors :
- ONE
- Contact Length - Mating :
- 0.120 3.05mm
- Termination :
- Solder
- Contact Type :
- Male Pin
- PCB Contact Pattern :
- RECTANGULAR
- Contact Current Rating :
- 1A
- Keyed :
- No
- Feature :
- Board Lock, Pick and Place
- Orientation :
- Vertical
- Lead Length :
- 762μm
- Mating Post Length :
- 3.048mm
- Factory Lead Time :
- 42 Weeks
- Insulation Height :
- 0.226 5.74mm
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Voltage - Rated AC :
- 30V
- DIN Conformance :
- No
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Series :
- AMPMODU 50/50 Grid
- Mount :
- Surface Mount
- Number of Rows :
- 2
- Number of Positions :
- 50
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Datasheets
- 5-147381-5
AMPMODU 50/50 Grid Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 50-Position Board to Board 0.226 5.74mm Height
5-147381-5 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number AMPMODU 50/50 Grid belongs to the AMPMODU 50/50 Grid Series.In addition to Automotive, General Purpose, Medical, Military, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock, Pick and Place feature.There is a Surface Mount mount on the part.A 30V voltage is used to supply power to this memory.This device operates at a temperature of -65°C~105°C.
5-147381-5 Features
AMPMODU 50/50 Grid series
5-147381-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-147381-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
