5-147381-2
Or copy the link below:
- Mfr.Part #
- 5-147381-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 1.27MM
- Stock
- 1,113
- In Stock ：
- 1,113
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Supply Voltage :
- 30V
- Housing Material :
- Polymer
- Connector Type :
- Header
- DIN Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Color :
- Black
- Insulation Height :
- 0.226 5.74mm
- Contact Current Rating :
- 1A
- Underplate Material :
- Nickel
- Stack Height :
- 6.35mm
- Flammability Rating :
- UL94 V-0
- Length :
- 15.79mm
- Lead Free :
- Lead Free
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Number of Conductors :
- ONE
- Feature :
- Board Lock, Pick and Place
- Lead Length :
- 762μm
- ELV :
- Compliant
- Mating Post Length :
- 3.048mm
- Fastening Type :
- Push-Pull
- Contact Resistance :
- 16mOhm
- Insulation Resistance :
- 5000000000Ohm
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Orientation :
- Vertical
- Keyed :
- No
- Number Of PCB Rows :
- 2
- Plating Thickness :
- 30μin
- Total Number of Contacts :
- 20
- Contact Finish - Mating :
- Gold
- Contact Length - Mating :
- 0.120 3.05mm
- Number of Positions Loaded :
- All
- Reliability :
- COMMERCIAL
- Contact Shape :
- Circular
- Number of Rows :
- 2
- Packaging :
- Tape and Reel (TR)
- Current Rating :
- 4A
- Voltage - Rated AC :
- 30V
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number of Positions :
- 20
- Contact Type :
- Male Pin
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Polarization Key :
- POLARIZED HOUSING
- Mating Contact Pitch :
- 0.05 inch
- Contact Material :
- Phosphor Bronze
- MIL Conformance :
- No
- Current Rating (Amps) :
- 0.5A per Contact
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Depth :
- 7.23mm
- Dielectric Withstanding Voltage :
- 300VAC V
- Filter Feature :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Contact Plating :
- Tin, Gold
- Style :
- Board to Board
- Factory Lead Time :
- 22 Weeks
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.050 1.27mm
- Shrouded End Dimension :
- 914.4 μm
- UL Flammability Code :
- 94V-0
- Series :
- AMPMODU 50/50 Grid
- Approval Agency :
- CSA
- RoHS Status :
- RoHS Compliant
- Applications :
- Automotive, General Purpose, Medical, Military, Telecommunications
- Published :
- 2006
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 30V
- Operating Temperature :
- -65°C~105°C
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Datasheets
- 5-147381-2

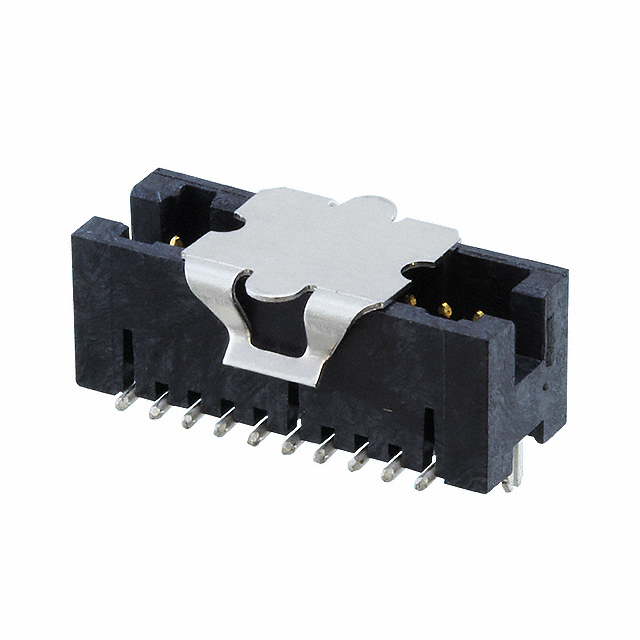

AMPMODU 50/50 Grid Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 20-Position Board to Board 0.226 5.74mm Height
5-147381-2 Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU 50/50 Grid Series.The device may be used for the following applications: Automotive, General Purpose, Medical, Military, Telecommunications.It is more powerful in many ways due to its Board Lock, Pick and Place feature.It is mounted by Surface Mount.Its operating supply voltage is 30V.It operates at an operating temperature of -65°C~105°C.
5-147381-2 Features
AMPMODU 50/50 Grid series
5-147381-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-147381-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
