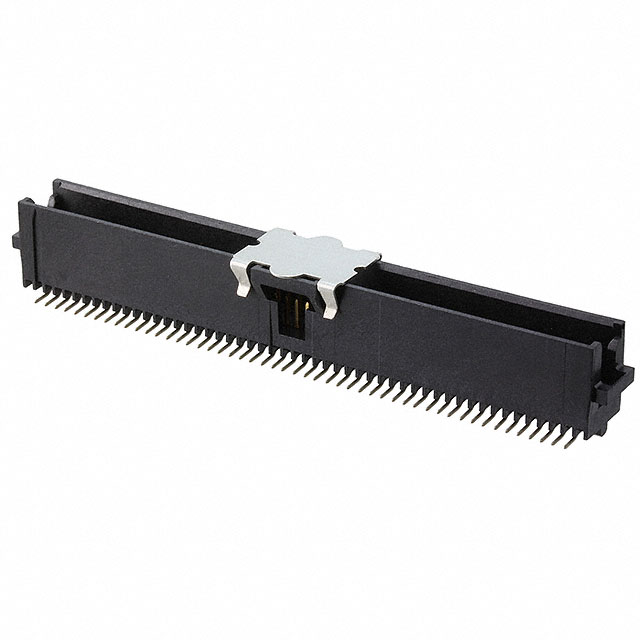

5-147377-8
Or copy the link below:
- Mfr.Part #
- 5-147377-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 100POS 1.27MM
- Stock
- 268
- In Stock ：
- 268
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Keyed :
- yes
- Contact Finish - Mating :
- Gold
- Mount :
- Surface Mount
- Number of Conductors :
- ONE
- Contact Finish - Post :
- Tin
- Packaging :
- Tape and Reel (TR)
- Contact Length - Mating :
- 0.125 3.18mm
- Operating Temperature :
- -65°C~105°C
- DIN Conformance :
- No
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Housing Material :
- Thermoplastic
- Plating Thickness :
- 30μin
- Voltage - Rated AC :
- 30V
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Contact Shape :
- Circular
- Total Number of Contacts :
- 100
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- MIL Conformance :
- No
- Approval Agency :
- CSA
- Lead Free :
- Contains Lead
- Orientation :
- Vertical
- Mating Contact Pitch :
- 0.05 inch
- Series :
- AMPMODU System 50
- IEC Conformance :
- No
- Contact Plating :
- Gold, Tin
- Published :
- 2006
- Filter Feature :
- No
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Factory Lead Time :
- 20 Weeks
- Contact Resistance :
- 15mOhm
- Number Of PCB Rows :
- 2
- RoHS Status :
- RoHS Compliant
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Mating :
- 0.050 1.27mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Depth :
- 8.74mm
- Insulation Height :
- 0.435 11.05mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Pick and Place
- Reliability :
- COMMERCIAL
- Length :
- 69.7mm
- Lead Length :
- 787.4μm
- Number of Positions :
- 100
- Number of Rows :
- 2
- Termination :
- Solder
- Gender :
- Male
- Style :
- Board to Board or Cable
- Contact Material :
- COPPER ALLOY
- Reference Standard :
- UL
- Fastening Type :
- Latch Holder
- Polarization Key :
- POLARIZED HOUSING
- Contact Type :
- Male Pin
- Current Rating :
- 1A
- Body Breadth :
- 0.344 inch
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 30VAC
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyphthalamide (PPA)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- ELV :
- Compliant
- UL Flammability Code :
- 94V-0
- Max Voltage Rating (AC) :
- 30V
- Mixed Contacts :
- No
- Rated Current (Signal) :
- 3.6A
- Mating Post Length :
- 787.4μm
- Radiation Hardening :
- No
- PCB Contact Row Spacing :
- 5.6896 mm
- Contact Current Rating :
- 1A
- Pbfree Code :
- yes
- Insertion Force-Max :
- 1.39 N
- Mounting Type :
- Surface Mount
- Operating Supply Voltage :
- 30V
- Datasheets
- 5-147377-8
AMPMODU System 50 Series 2-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Polyphthalamide (PPA) 100-Position Board to Board or Cable 0.435 11.05mm Height
5-147377-8 Overview
A Header package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tape & Reel (TR) case.It is part of the AMPMODU System 50 Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Medical, Telecommunications.A number of features make it more powerful because of its Pick and Place feature.Surface Mount mounts the part.A voltage of 30V is required to operate this memory.There is no operating temperature for the device.
5-147377-8 Features
AMPMODU System 50 series
5-147377-8 Applications
There are a lot of TE Connectivity AMP Connectors
5-147377-8 Rectangular Connectors applications.
