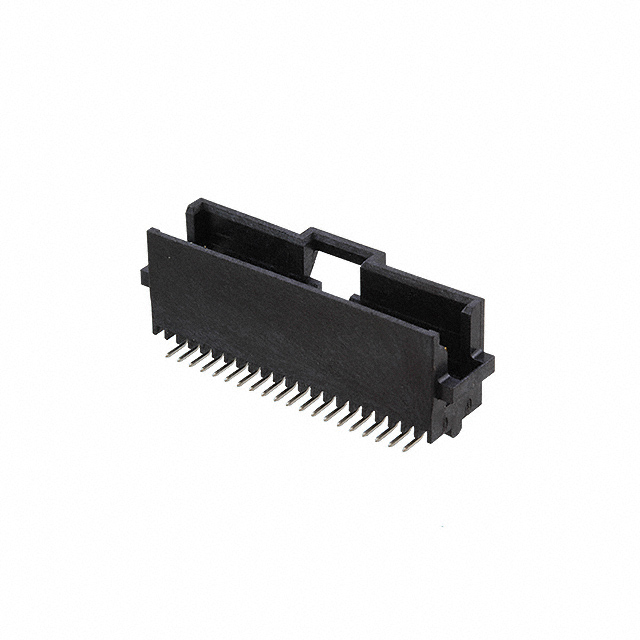

5-147377-4
Or copy the link below:
- Mfr.Part #
- 5-147377-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 40POS 1.27MM
- Stock
- 800
- In Stock ：
- 800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Voltage - Rated :
- 30VAC
- Filter Feature :
- No
- Contact Material :
- COPPER ALLOY
- Mount :
- Surface Mount
- Fastening Type :
- Latch Holder
- Mating Contact Pitch :
- 0.05 inch
- Number of Positions Loaded :
- All
- Radiation Hardening :
- No
- Depth :
- 9.52mm
- Contact Current Rating :
- 1A
- Insulation Color :
- Black
- Mixed Contacts :
- No
- Dielectric Withstanding Voltage :
- 500VAC V
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Gender :
- Male
- Length :
- 31.6mm
- Rated Current (Signal) :
- 3.6A
- Voltage - Rated AC :
- 30V
- Number Of PCB Rows :
- 2
- Factory Lead Time :
- 14 Weeks
- Max Voltage Rating (AC) :
- 30V
- Mating Post Length :
- 787.4μm
- Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Contact Shape :
- Circular
- Reference Standard :
- UL
- Insulation Resistance :
- 1000000000Ohm
- Lead Length :
- 787.4μm
- Approval Agency :
- CSA
- Contact Length - Mating :
- 0.125 3.18mm
- Contact Resistance :
- 15mOhm
- Pbfree Code :
- yes
- Published :
- 2006
- Mounting Type :
- Surface Mount
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Polarization Key :
- POLARIZED HOUSING
- Body Breadth :
- 0.344 inch
- Reliability :
- COMMERCIAL
- Connector Type :
- Header
- Contact Type :
- Male Pin
- ECCN Code :
- EAR99
- Contact Finish - Post :
- Tin
- Current Rating :
- 1A
- Plating Thickness :
- 30μin
- DIN Conformance :
- No
- Insulation Height :
- 0.435 11.05mm
- Insulation Material :
- Polyphthalamide (PPA)
- Number of Conductors :
- ONE
- IEC Conformance :
- No
- Keyed :
- yes
- Number of Positions :
- 40
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Style :
- Board to Board or Cable
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- PCB Contact Pattern :
- RECTANGULAR
- Series :
- AMPMODU System 50
- Housing Material :
- Thermoplastic
- Orientation :
- Vertical
- Insertion Force-Max :
- 1.39 N
- UL Flammability Code :
- 94V-0
- Total Number of Contacts :
- 40
- PCB Contact Row Spacing :
- 5.6896 mm
- Contact Plating :
- Gold, Tin
- Termination :
- Solder
- Packaging :
- Tape and Reel (TR)
- Pitch - Mating :
- 0.050 1.27mm
- Operating Supply Voltage :
- 30V
- Operating Temperature :
- -65°C~105°C
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Feature :
- Pick and Place
- Datasheets
- 5-147377-4
AMPMODU System 50 Series 2-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Polyphthalamide (PPA) 40-Position Board to Board or Cable 0.435 11.05mm Height
5-147377-4 Overview
The packaging is Header.Mounting type is Surface Mount.To package the product, we use a Tape & Reel (TR) case.This product is from the AMPMODU System 50 Series.A possible application is Automotive, General Purpose, Medical, Telecommunications.A number of advantages are provided by its Pick and Place feature.Mounted by Surface Mount.In this memory, the operating supply voltage is 30V.Device runs at -65°C~105°C Operating Temperature.
5-147377-4 Features
AMPMODU System 50 series
5-147377-4 Applications
There are a lot of TE Connectivity AMP Connectors
5-147377-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
