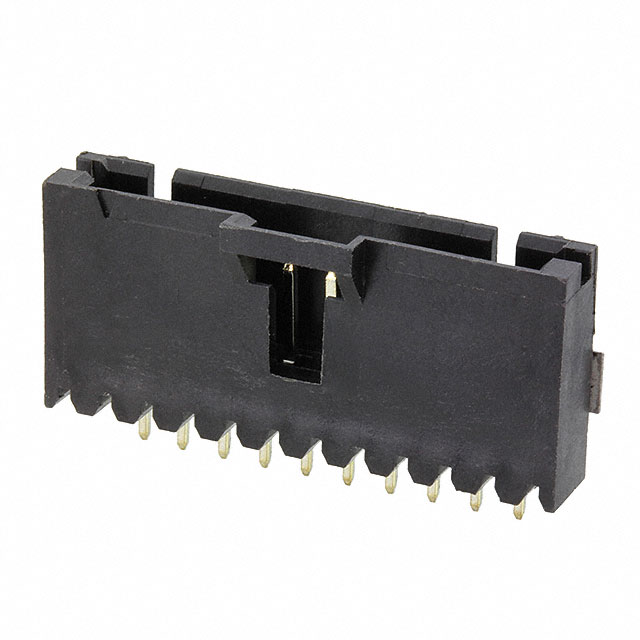

5-147324-9
Or copy the link below:
- Mfr.Part #
- 5-147324-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 10POS 2.54MM
- Stock
- 48,276
- In Stock ：
- 48,276
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Orientation :
- RIGHT ANGLE
- Contact Current Rating :
- 3A
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Total Number of Contacts :
- 10
- Contact Material :
- Brass
- PCB Mount Alignment :
- Without
- Contact Gender :
- Male
- Number of Rows :
- 1
- Additional Feature :
- LATCHED, POLARIZED
- Style :
- Board to Board or Cable
- Height :
- 13.59mm
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Radiation Hardening :
- No
- UL Flammability Code :
- 94V-0
- Insulation Resistance :
- 5GOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Approval Agency :
- CSA
- Operating Temperature :
- -65°C~105°C
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Number of Positions :
- 10
- Plating Thickness :
- 5.08μm
- ELV :
- Compliant
- Series :
- AMPMODU MTE
- Insulation Height :
- 0.200 5.08mm
- Mounting Type :
- Surface Mount, Right Angle
- Published :
- 2008
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Thermoplastic
- Row Spacing :
- 2.54 mm
- Factory Lead Time :
- 20 Weeks
- Current Rating :
- 3A
- Contact Shape :
- Square
- Mating Post Length :
- 5.842mm
- Fastening Type :
- Latch Holder
- Mixed Contacts :
- No
- Contact Length - Mating :
- 0.230 5.84mm
- Pitch - Mating :
- 0.100 2.54mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length - Tail :
- 3.048mm
- Pbfree Code :
- yes
- Filter Feature :
- No
- Mating Retention :
- With
- RoHS Status :
- RoHS Compliant
- Shrouding :
- Shrouded - 4 Wall
- MIL Conformance :
- No
- Mount :
- Surface Mount
- Connector Type :
- Header
- Length :
- 30.48mm
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Housing Color :
- Black
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Termination :
- Solder
- Datasheets
- 5-147324-9
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Thermoplastic 10-Position Board to Board or Cable 0.200 5.08mm Height
5-147324-9 Overview
This product is packaged in a Header box.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the AMPMODU MTE Series.Furthermore, there are other features such as LATCHED, POLARIZED, to name a few.There is the possibility of using the device for Automotive, General Purpose, Medical, Telecommunications.In many ways, Board Lock, Keying Slot, Solder Retention makes it more powerful.By Surface Mount, the part is mounted.Operating temperature is set to -65°C~105°C.
5-147324-9 Features
AMPMODU MTE series
5-147324-9 Applications
There are a lot of TE Connectivity AMP Connectors
5-147324-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
