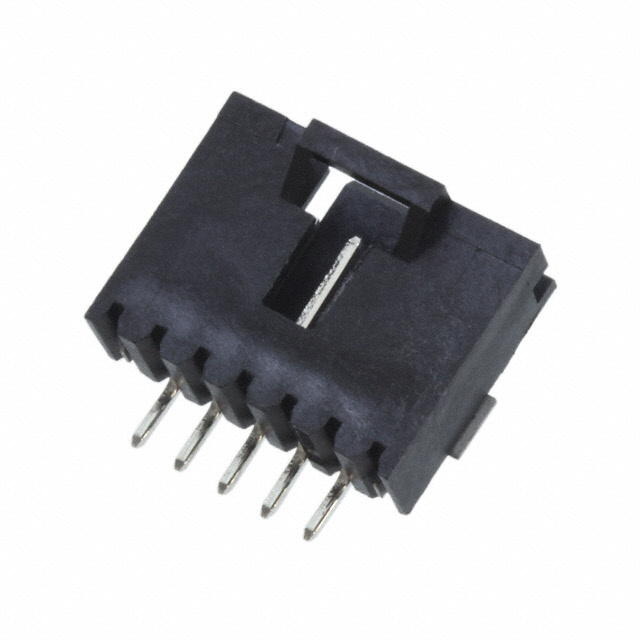

5-147324-4
Or copy the link below:
- Mfr.Part #
- 5-147324-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 5POS 2.54MM
- Stock
- 3,120
- In Stock ：
- 3,120
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Radiation Hardening :
- No
- Orientation :
- RIGHT ANGLE
- Contact Type :
- Male Pin
- Published :
- 2007
- MIL Conformance :
- No
- UL Flammability Code :
- 94V-0
- Height :
- 13.59mm
- Contact Material :
- Brass
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Fastening Type :
- Latch Holder
- Current Rating :
- 3A
- Pitch - Mating :
- 0.100 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Additional Feature :
- LATCHED, POLARIZED
- Mating Post Length :
- 5.842mm
- Contact Gender :
- Male
- Termination :
- Solder
- Insulation Resistance :
- 5GOhm
- REACH SVHC :
- No SVHC
- Operating Temperature :
- -65°C~105°C
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Length :
- 17.78mm
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Factory Lead Time :
- 16 Weeks
- Approval Agency :
- CSA
- Number of Positions :
- 5
- Mating Retention :
- With
- PCB Mounting Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Thermoplastic
- Length - Tail :
- 3.048mm
- Filter Feature :
- No
- Mixed Contacts :
- No
- Plating Thickness :
- 5.08μm
- Contact Finish - Mating :
- Tin
- PCB Mount Alignment :
- Without
- Mounting Type :
- Surface Mount, Right Angle
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.200 5.08mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Resistance :
- 15mOhm
- Contact Length - Mating :
- 0.230 5.84mm
- Contact Current Rating :
- 3A
- Mount :
- Surface Mount
- IEC Conformance :
- No
- Contact Shape :
- Square
- Packaging :
- Tape and Reel (TR)
- Style :
- Board to Board or Cable
- Depth :
- 13.59mm
- Number of Rows :
- 1
- Total Number of Contacts :
- 5
- Row Spacing :
- 2.54 mm
- Series :
- AMPMODU MTE
- Housing Color :
- Black
- RoHS Status :
- RoHS Compliant
- DIN Conformance :
- No
- Datasheets
- 5-147324-4
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Thermoplastic 5-Position Board to Board or Cable 0.200 5.08mm Height
5-147324-4 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the AMPMODU MTE Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as LATCHED, POLARIZED, to name a few.This device may be used for the purpose of Automotive, General Purpose, Medical, Telecommunications.A number of features make the Board Lock, Keying Slot, Solder Retention feature more powerful.Surface Mount represents the mounting point for the part.-65°C~105°C Operating Temperature is the default operating temperature for the device.
5-147324-4 Features
AMPMODU MTE series
5-147324-4 Applications
There are a lot of TE Connectivity AMP Connectors
5-147324-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
