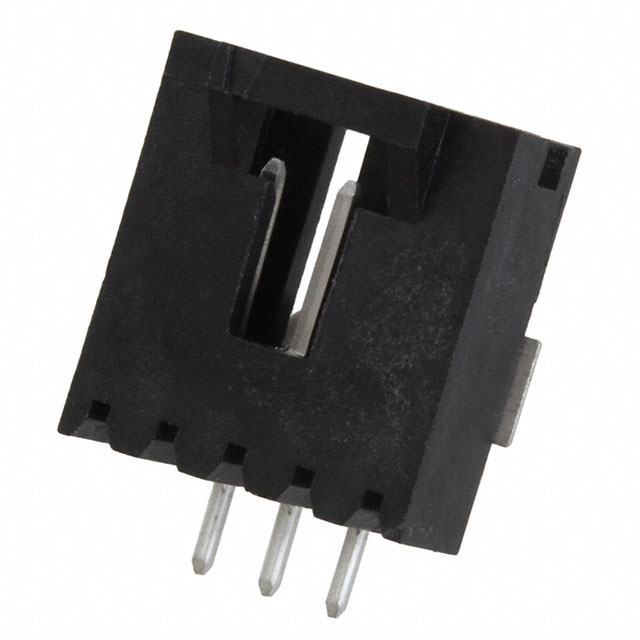

5-147324-2
Or copy the link below:
- Mfr.Part #
- 5-147324-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 3POS 2.54MM
- Stock
- 86
- In Stock ：
- 86
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Plating Thickness :
- 5.08μm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Depth :
- 13.59mm
- Plating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Orientation :
- RIGHT ANGLE
- Pitch :
- 2.54mm
- Row Spacing :
- 2.54 mm
- Height :
- 13.59mm
- Packaging :
- Tape and Reel (TR)
- Number of Rows :
- 1
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Current Rating :
- 3A
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Surface Mount, Right Angle
- Min Operating Temperature :
- -65°C
- Insulation Color :
- Black
- Factory Lead Time :
- 16 Weeks
- Body Material :
- Thermoplastic
- Insulation Height :
- 0.200 5.08mm
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- REACH SVHC :
- No SVHC
- Housing Color :
- Black
- Termination :
- Solder
- Shrouding :
- Shrouded - 4 Wall
- Housing Material :
- Thermoplastic
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Tin
- Gender :
- Male
- Contact Finish - Post :
- Tin
- Contact Material :
- Brass
- Length - Tail :
- 3.048mm
- Fastening Type :
- Latch Holder
- Number of Positions :
- 3
- Operating Temperature :
- -65°C~105°C
- Contact Length - Mating :
- 0.230 5.84mm
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Material :
- Thermoplastic
- PCB Mount Alignment :
- Without
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Style :
- Board to Board or Cable
- Number of Contacts :
- 3
- Series :
- AMPMODU MTE
- Contact Type :
- Male Pin
- PCB Mount Retention :
- With
- Pitch - Mating :
- 0.100 2.54mm
- Max Operating Temperature :
- 105°C
- Mating Retention :
- With
- Mount :
- Surface Mount
- Published :
- 2008
- Insulation Resistance :
- 5GOhm
- Approval Agency :
- CSA
- ELV :
- Compliant
- Contact Current Rating :
- 3A
- Length :
- 12.7mm
- Contact Finish - Mating :
- Tin
- Color :
- Black
- Contact Gender :
- Male
- Mating Post Length :
- 5.842mm
- Number of Positions Loaded :
- All
- Contact Resistance :
- 15mOhm
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Current Rating (Amps) :
- 3A
- Datasheets
- 5-147324-2
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Thermoplastic 3-Position Board to Board or Cable 0.200 5.08mm Height
5-147324-2 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU MTE Series.Use it when the temperature is below 105°C.Temperatures below -65°C are required for this device to operate.The device may be used for the following applications: Automotive, General Purpose, Medical, Telecommunications.It is more powerful in many ways due to its Board Lock, Keying Slot, Solder Retention feature.It is mounted by Surface Mount.It operates at an operating temperature of -65°C~105°C.
5-147324-2 Features
AMPMODU MTE series
5-147324-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-147324-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
