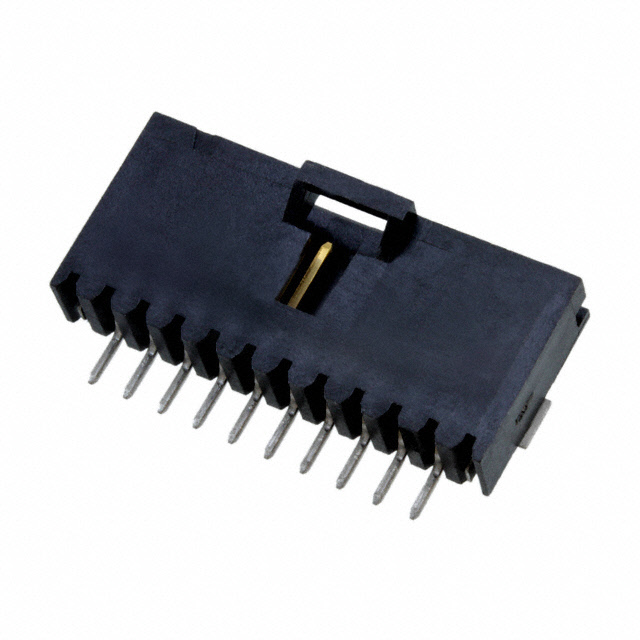

5-147323-9
Or copy the link below:
- Mfr.Part #
- 5-147323-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 10POS 2.54MM
- Stock
- 300
- In Stock ：
- 300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Depth :
- 13.59mm
- Number of Rows :
- 1
- IEC Conformance :
- No
- Insulation Height :
- 0.200 5.08mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Post :
- Tin
- Mounting Type :
- Surface Mount, Right Angle
- Number of Positions :
- 10
- Operating Temperature :
- -65°C~105°C
- Pbfree Code :
- yes
- Factory Lead Time :
- 20 Weeks
- Number of Positions Loaded :
- All
- Additional Feature :
- AMPMODU, LATCHED, POLARIZED
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Black
- Style :
- Board to Board or Cable
- Gender :
- Male
- DIN Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Header
- UL Flammability Code :
- 94V-0
- Contact Material :
- Brass
- Total Number of Contacts :
- 10
- Fastening Type :
- Latch Holder
- Length :
- 30.48mm
- Filter Feature :
- No
- Contact Length - Mating :
- 0.230 5.84mm
- Terminal Pitch :
- 2.54mm
- Published :
- 2008
- Termination :
- Solder
- Mixed Contacts :
- No
- Insulation Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating (Amps) :
- 3A
- Feature :
- Board Lock, Keying Slot, Solder Retention
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Contact Resistance :
- 15mOhm
- Packaging :
- Tape and Reel (TR)
- Series :
- AMPMODU MTE
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Datasheets
- 5-147323-9
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 10-Position Board to Board or Cable 0.200 5.08mm Height
5-147323-9 Overview
It comes in Header packaging.The device's mounting type is Surface Mount, Right Angle.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the AMPMODU MTE Series of products.In addition, there are other features such as AMPMODU, LATCHED, POLARIZED, to mention only a few.Automotive, General Purpose, Medical, Telecommunications is a possible application for the device.Its Board Lock, Keying Slot, Solder Retention feature renders it more powerful in many ways.The device runs in -65°C~105°C Operating Temperature.
5-147323-9 Features
AMPMODU MTE series
5-147323-9 Applications
There are a lot of TE Connectivity AMP Connectors
5-147323-9 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
