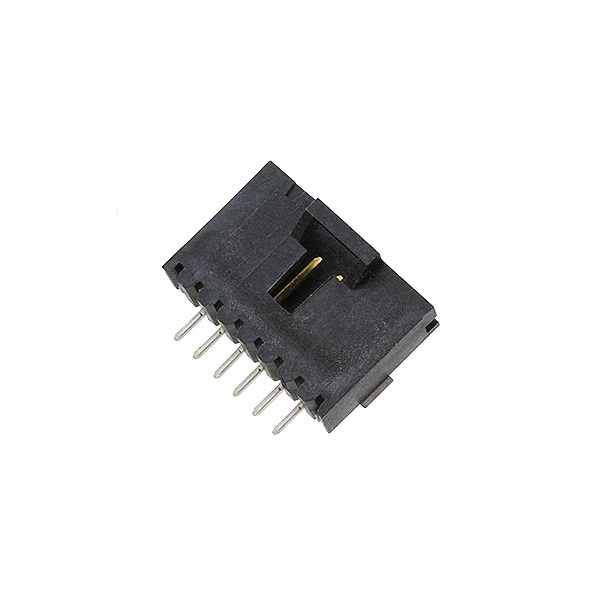

5-147323-5
Or copy the link below:
- Mfr.Part #
- 5-147323-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 6POS 2.54MM
- Stock
- 31,794
- In Stock ：
- 31,794
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Series :
- AMPMODU MTE
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- IEC Conformance :
- No
- Mount :
- Surface Mount
- RoHS Status :
- RoHS Compliant
- Length :
- 20.32mm
- Pbfree Code :
- yes
- Fastening Type :
- Latch Holder
- Insulation Color :
- Black
- Number of Positions :
- 6
- Contact Material :
- Brass
- Insulation Height :
- 0.200 5.08mm
- Number of Positions Loaded :
- All
- JESD-609 Code :
- e3
- Contact Length - Mating :
- 0.230 5.84mm
- Additional Feature :
- AMPMODU, LATCHED, POLARIZED
- Shrouding :
- Shrouded - 4 Wall
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Header
- Terminal Pitch :
- 2.54mm
- Filter Feature :
- No
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Thermoplastic
- Mixed Contacts :
- No
- Contact Resistance :
- 15mOhm
- Contact Type :
- Male Pin
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Current Rating (Amps) :
- 3A
- Packaging :
- Tape and Reel (TR)
- Gender :
- Male
- Termination :
- Solder
- Number of Rows :
- 1
- MIL Conformance :
- No
- Operating Temperature :
- -65°C~105°C
- Contact Shape :
- Square
- Depth :
- 13.59mm
- UL Flammability Code :
- 94V-0
- Radiation Hardening :
- No
- DIN Conformance :
- No
- Factory Lead Time :
- 16 Weeks
- Published :
- 2008
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Gold
- Total Number of Contacts :
- 6
- Style :
- Board to Board or Cable
- Contact Finish - Post :
- Tin
- Datasheets
- 5-147323-5
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 6-Position Board to Board or Cable 0.200 5.08mm Height
5-147323-5 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the AMPMODU MTE Series.Moreover, there are a number of other features, including AMPMODU, LATCHED, POLARIZED, to name just a few.A possible application for the device is Automotive, General Purpose, Medical, Telecommunications.In many ways, its Board Lock, Keying Slot, Solder Retention feature makes it more powerful.Surface Mount is used to mount the part.In this case, the device operates at -65°C~105°C Operating Temperature.
5-147323-5 Features
AMPMODU MTE series
5-147323-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-147323-5 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
