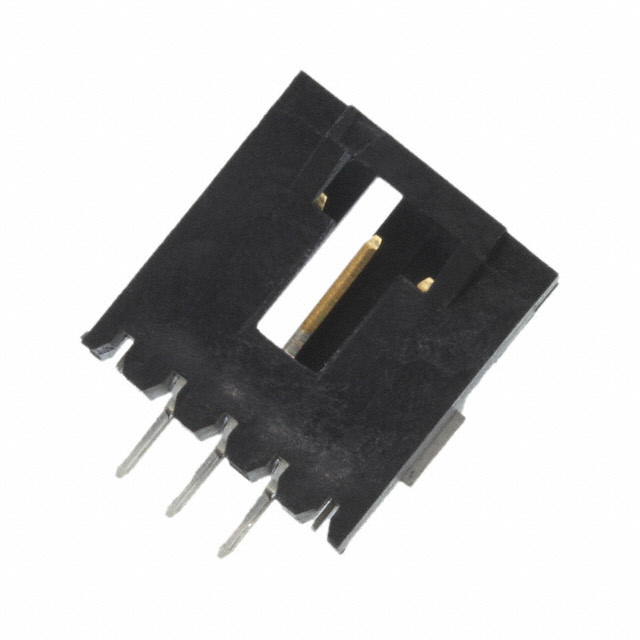

5-147323-2
Or copy the link below:
- Mfr.Part #
- 5-147323-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 3POS 2.54MM
- Stock
- 12,880
- In Stock ：
- 12,880
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- PCB Mounting Orientation :
- RIGHT ANGLE
- Housing Material :
- Thermoplastic
- Insulation Height :
- 0.200 5.08mm
- Insulation Resistance :
- 5GOhm
- Housing Color :
- Black
- Orientation :
- RIGHT ANGLE
- Mating Retention :
- With
- Pitch :
- 2.54mm
- Series :
- AMPMODU MTE
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -65°C~105°C
- Insulation Color :
- Black
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tape and Reel (TR)
- Plating Thickness :
- 5.08μm
- Contact Length - Mating :
- 0.230 5.84mm
- PCB Mount Retention :
- With
- Contact Plating :
- Tin, Gold
- ELV :
- Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- PCB Mount Alignment :
- Without
- Number of Rows :
- 1
- Mount :
- Surface Mount
- Color :
- Black
- Max Operating Temperature :
- 105°C
- Material Flammability Rating :
- UL94 V-0
- Plating :
- Gold
- Contact Type :
- Male Pin
- Current Rating :
- 3A
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Factory Lead Time :
- 11 Weeks
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Length - Tail :
- 3.048mm
- Contact Shape :
- Square
- Number of Contacts :
- 3
- Length :
- 12.7mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Contact Gender :
- Male
- Insulation Material :
- Thermoplastic
- Contact Resistance :
- 15mOhm
- Height :
- 13.59mm
- Connector Type :
- Header
- Fastening Type :
- Latch Holder
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Material :
- Brass
- Shrouding :
- Shrouded - 4 Wall
- Depth :
- 13.59mm
- Row Spacing :
- 2.54 mm
- Mounting Type :
- Surface Mount, Right Angle
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Min Operating Temperature :
- -65°C
- Current Rating (Amps) :
- 3A
- Style :
- Board to Board or Cable
- Contact Current Rating :
- 3A
- Contact Finish - Post :
- Tin
- Published :
- 2008
- Approval Agency :
- CSA
- Mating Post Length :
- 5.842mm
- Datasheets
- 5-147323-2
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 3-Position Board to Board or Cable 0.200 5.08mm Height
5-147323-2 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU MTE Series.Use it when the temperature is below 105°C.Temperatures below -65°C are required for this device to operate.The device may be used for the following applications: Automotive, General Purpose, Medical, Telecommunications.It is more powerful in many ways due to its Board Lock, Keying Slot, Solder Retention feature.It is mounted by Surface Mount.It operates at an operating temperature of -65°C~105°C.
5-147323-2 Features
AMPMODU MTE series
5-147323-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-147323-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
