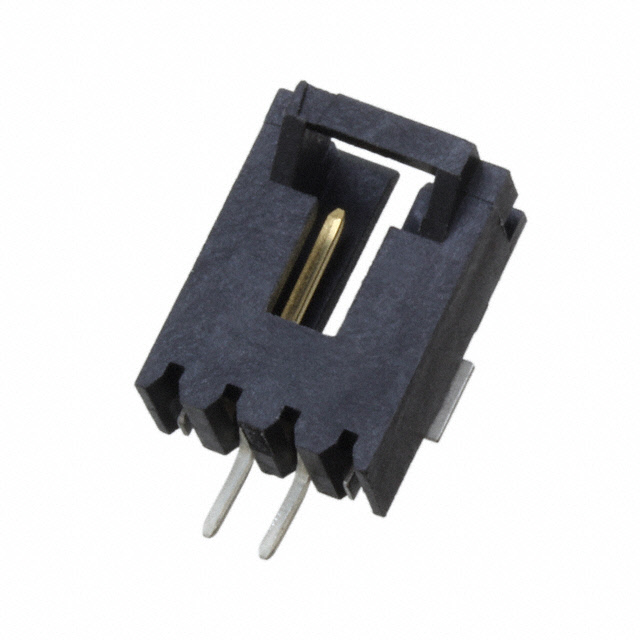

5-147323-1
Or copy the link below:
- Mfr.Part #
- 5-147323-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS 2.54MM
- Stock
- 17,490
- In Stock ：
- 17,490
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 2
- Plating Thickness :
- 5.08μm
- Number of Contacts :
- 2
- Style :
- Board to Board or Cable
- Row Spacing :
- 2.54 mm
- Number of Positions Loaded :
- All
- Mating Post Length :
- 5.842mm
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Connector Type :
- Header
- Contact Plating :
- Tin, Gold
- Height :
- 13.59mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mounting Type :
- Surface Mount, Right Angle
- PCB Mount Retention :
- With
- Insulation Height :
- 0.200 5.08mm
- Pitch :
- 2.54mm
- Contact Material :
- Brass
- PCB Mounting Orientation :
- RIGHT ANGLE
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 3A
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 3A
- Pitch - Mating :
- 0.100 2.54mm
- Min Operating Temperature :
- -65°C
- Max Operating Temperature :
- 105°C
- Factory Lead Time :
- 16 Weeks
- Housing Material :
- Thermoplastic
- Contact Type :
- Male Pin
- Fastening Type :
- Latch Holder
- Insulation Color :
- Black
- Length :
- 10.16mm
- Radiation Hardening :
- No
- Published :
- 2008
- Contact Gender :
- Male
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Orientation :
- RIGHT ANGLE
- Termination :
- Solder
- Length - Tail :
- 3.048mm
- Number of Rows :
- 1
- Current Rating (Amps) :
- 3A
- Insulation Resistance :
- 5GOhm
- Series :
- AMPMODU MTE
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.230 5.84mm
- PCB Mount Alignment :
- Without
- Mount :
- Surface Mount
- Depth :
- 13.59mm
- Contact Resistance :
- 15mOhm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Tape and Reel (TR)
- Insulation Material :
- Thermoplastic
- Plating :
- Gold
- Operating Temperature :
- -65°C~105°C
- Approval Agency :
- CSA
- Color :
- Black
- Mating Retention :
- With
- Housing Color :
- Black
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Datasheets
- 5-147323-1
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 2-Position Board to Board or Cable 0.200 5.08mm Height
5-147323-1 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU MTE Series.Use it when the temperature is below 105°C.Temperatures below -65°C are required for this device to operate.The device may be used for the following applications: Automotive, General Purpose, Medical, Telecommunications.It is more powerful in many ways due to its Board Lock, Keying Slot, Solder Retention feature.It is mounted by Surface Mount.It operates at an operating temperature of -65°C~105°C.
5-147323-1 Features
AMPMODU MTE series
5-147323-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-147323-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
