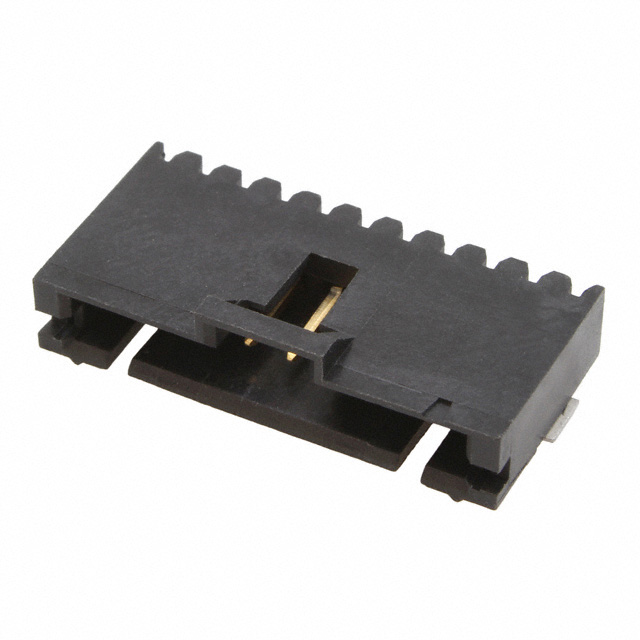

5-147278-8
Or copy the link below:
- Mfr.Part #
- 5-147278-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 9POS 2.54MM
- Stock
- 44,090
- In Stock ：
- 44,090
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Contact Shape :
- Square
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tape and Reel (TR)
- Insulation Material :
- Thermoplastic
- Published :
- 2008
- Depth :
- 13.59mm
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Termination :
- Solder
- Contact Resistance :
- 15mOhm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Current Rating :
- 3A
- Insulation Resistance :
- 5GOhm
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 600V
- Number of Rows :
- 1
- Insulation Color :
- Black
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mount Alignment :
- Without
- Plating Thickness :
- 5.08μm
- Connector Type :
- Header
- Contact Material :
- Brass
- Contact Length - Mating :
- 0.230 5.84mm
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Mating Retention :
- With
- Filter Feature :
- No
- Approval Agency :
- CSA
- Mounting Type :
- Surface Mount, Right Angle
- Series :
- AMPMODU MTE
- Fastening Type :
- Latch Holder
- Contact Plating :
- Tin, Gold
- Shrouding :
- Shrouded - 4 Wall
- Total Number of Contacts :
- 9
- Contact Gender :
- Male
- Style :
- Board to Board or Cable
- Insulation Height :
- 0.200 5.08mm
- Operating Temperature :
- -65°C~105°C
- Factory Lead Time :
- 16 Weeks
- Mixed Contacts :
- No
- Number of Positions :
- 9
- Orientation :
- RIGHT ANGLE
- Contact Finish - Post :
- Tin
- Height :
- 13.59mm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- MIL Conformance :
- No
- ELV :
- Compliant
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Mount :
- Surface Mount
- Contact Type :
- Male Pin
- Contact Current Rating :
- 3A
- Length - Tail :
- 3.048mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Row Spacing :
- 2.54 mm
- Mating Post Length :
- 5.842mm
- Length :
- 27.94mm
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Additional Feature :
- LATCHED, POLARIZED
- Datasheets
- 5-147278-8
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 9-Position Board to Board or Cable 0.200 5.08mm Height
5-147278-8 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU MTE Series.Among other features are LATCHED, POLARIZED, to name only a few.The device may be used for the following applications: Automotive, General Purpose, Medical, Telecommunications.It is more powerful in many ways due to its Board Lock, Keying Slot, Solder Retention feature.It is mounted by Surface Mount.It operates at an operating temperature of -65°C~105°C.
5-147278-8 Features
AMPMODU MTE series
5-147278-8 Applications
There are a lot of TE Connectivity AMP Connectors
5-147278-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
