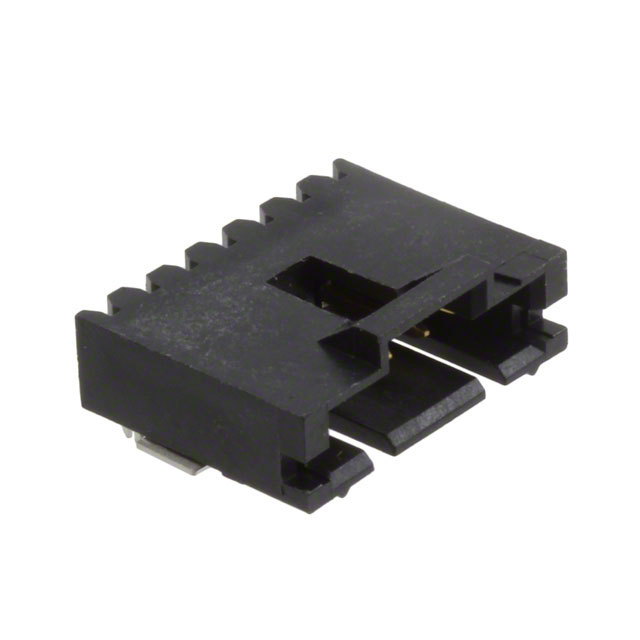

5-147278-4
Or copy the link below:
- Mfr.Part #
- 5-147278-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 5POS 2.54MM
- Stock
- 9,618
- In Stock ：
- 9,618
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Min Operating Temperature :
- -65°C
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Max Operating Temperature :
- 105°C
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Mating Post Length :
- 5.842mm
- Insulation Material :
- Thermoplastic
- Length :
- 17.78mm
- Height :
- 13.59mm
- Orientation :
- RIGHT ANGLE
- PCB Mount Retention :
- With
- Housing Material :
- Thermoplastic
- Voltage - Rated :
- 600V
- Contact Shape :
- Square
- Mating Retention :
- With
- Housing Color :
- Black
- REACH SVHC :
- No SVHC
- PCB Mounting Orientation :
- RIGHT ANGLE
- Series :
- AMPMODU MTE
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Insulation Color :
- Black
- Contact Current Rating :
- 3A
- Mounting Type :
- Surface Mount, Right Angle
- Style :
- Board to Board or Cable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 5GOhm
- Row Spacing :
- 2.54 mm
- Contact Material :
- Brass
- Contact Finish - Mating :
- Gold
- Factory Lead Time :
- 16 Weeks
- Fastening Type :
- Latch Holder
- Plating Thickness :
- 5.08μm
- PCB Mount Alignment :
- Without
- Plating :
- Gold
- Contact Length - Mating :
- 0.230 5.84mm
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Contact Gender :
- Male
- Insulation Height :
- 0.200 5.08mm
- Number of Rows :
- 1
- Approval Agency :
- CSA
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.54mm
- Number of Positions :
- 5
- Color :
- Black
- Flammability Rating :
- UL94 V-0
- Gender :
- Male
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Contact Plating :
- Gold, Tin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Length - Tail :
- 3.048mm
- Number of Contacts :
- 5
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Current Rating :
- 3A
- Lead Free :
- Lead Free
- Mount :
- Surface Mount
- Operating Temperature :
- -65°C~105°C
- Depth :
- 13.59mm
- Contact Resistance :
- 15mOhm
- Contact Finish - Post :
- Tin
- Current Rating (Amps) :
- 3A
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tape and Reel (TR)
- Published :
- 2008
- Radiation Hardening :
- No
- Datasheets
- 5-147278-4
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 5-Position Board to Board or Cable 0.200 5.08mm Height
5-147278-4 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the AMPMODU MTE Series.Use it when the temperature is below 105°C.Temperatures below -65°C are required for this device to operate.The device may be used for the following applications: Automotive, General Purpose, Medical, Telecommunications.It is more powerful in many ways due to its Board Lock, Keying Slot, Solder Retention feature.It is mounted by Surface Mount.It operates at an operating temperature of -65°C~105°C.
5-147278-4 Features
AMPMODU MTE series
5-147278-4 Applications
There are a lot of TE Connectivity AMP Connectors
5-147278-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
