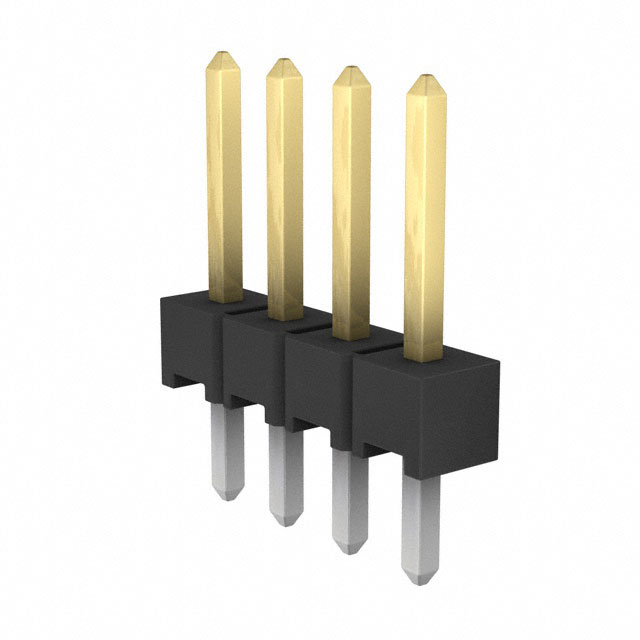

5-146292-4
Or copy the link below:
- Mfr.Part #
- 5-146292-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 22,275
- In Stock ：
- 22,275
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Series :
- AMPMODU Mod II
- Mating Post Length :
- 5.842mm
- IEC Conformance :
- No
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Approval Agency :
- CSA
- Fastening Type :
- Push-Pull
- Packaging :
- Bulk
- Contact Length - Post :
- 0.120 3.05mm
- Published :
- 2006
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -65°C~105°C
- REACH SVHC :
- Unknown
- Overall Contact Length :
- 0.440 11.18mm
- Contact Length - Mating :
- 0.230 5.84mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 9.75mm
- High Temperature Housing :
- yes
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 3A
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole
- Gender :
- Male
- PCB Thickness :
- 1.6002mm
- Contact Shape :
- Square
- Keyed :
- No
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Contact Finish - Post :
- Tin
- Row Spacing :
- 2.54 mm
- Connector Type :
- Header, Breakaway
- Style :
- Board to Board or Cable
- Pitch - Mating :
- 0.100 2.54mm
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Termination :
- Press-Fit, Solder
- Number of Rows :
- 1
- Depth :
- 2.34mm
- Housing Material :
- Polymer
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Factory Lead Time :
- 17 Weeks
- Insulation Height :
- 0.090 2.29mm
- Number of Positions :
- 4
- Filter Feature :
- No
- Shrouding :
- Unshrouded
- DIN Conformance :
- No
- Housing Color :
- Black
- Lead Length :
- 3.048mm
- Number of Positions Loaded :
- All
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 3A
- PCB Mounting Orientation :
- Vertical
- Datasheets
- 5-146292-4
AMPMODU Mod II Series 1-Row Header, Breakaway Press-Fit, Solder Copper Alloy Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 4-Position Board to Board or Cable 0.090 2.29mm Height
5-146292-4 Overview
Packaging is in the form of Header, Breakaway.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod II Series.There is a mounting hole at Through Hole.Devices operate at -65°C~105°C operating temperatures.
