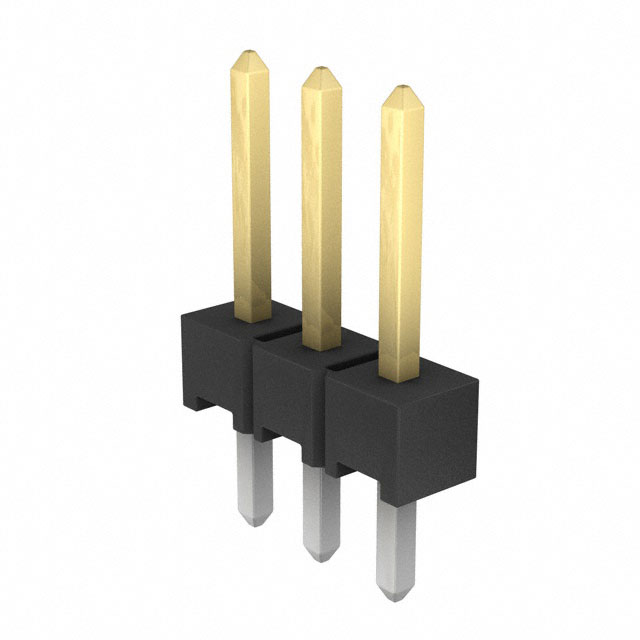

5-146284-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

15.0μin 0.38μm

ELV :

Compliant

Style :

Board to Board or Cable

Mounting Type :

Through Hole

MIL Conformance :

No

Contact Finish - Mating :

Gold

Filter Feature :

No

RoHS Status :

RoHS Compliant

Series :

AMPMODU Mod II

Contact Length - Post :

0.090 2.29mm

Number of Positions Loaded :

All

Mount :

Through Hole

Housing Color :

Black

Length :

7.21mm

IEC Conformance :

No

Contact Finish Thickness - Post :

100.0μin 2.54μm

Shrouding :

Unshrouded

Lead Length :

2.29mm

Max Voltage Rating (AC) :

250V

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

JESD-609 Code :

e3

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Connector Type :

Header, Breakaway

Mating Post Length :

5.842mm

High Temperature Housing :

yes

Housing Material :

Polymer

High Speed Serial Data Connector :

No

Overall Contact Length :

0.410 10.41mm

Orientation :

Vertical

Contact Shape :

Square

Row Spacing :

2.54 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

3

Contact Finish - Post :

Tin

Mixed Contacts :

No

Operating Temperature :

-65°C~105°C

Contact Material :

COPPER ALLOY

Contact Length - Mating :

0.230 5.84mm

Approval Agency :

CSA

Published :

2014

Flammability Rating :

UL94 V-0

Insulation Material :

Liquid Crystal Polymer (LCP)

Pbfree Code :

yes

Termination :

Solder

DIN Conformance :

No

Factory Lead Time :

17 Weeks

Pitch - Mating :

0.100 2.54mm

Number of Rows :

1

Contact Gender :

Male

Current Rating (Amps) :

3A

Packaging :

Bulk

PCB Thickness :

1.6002mm

Insulation Height :

0.090 2.29mm

Contact Type :

Male Pin

Depth :

2.34mm

Fastening Type :

Push-Pull
