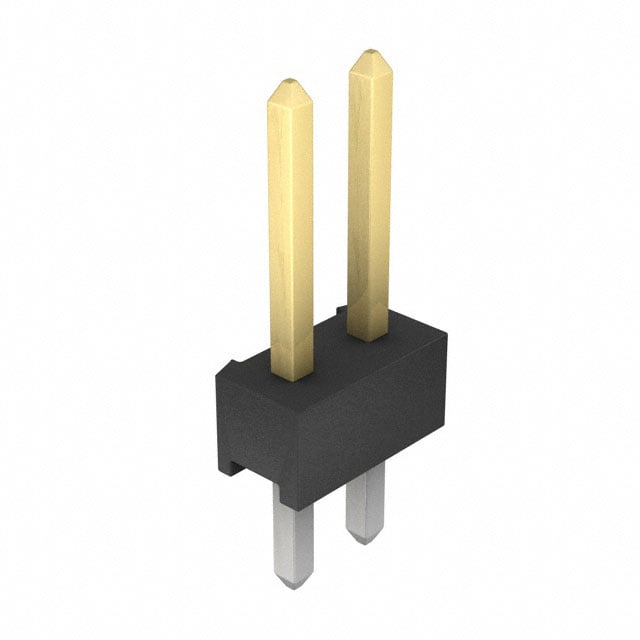

5-146265-1
Or copy the link below:
- Mfr.Part #
- 5-146265-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 1,232
- In Stock ：
- 1,232
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header, Breakaway
- Contact Material :
- COPPER ALLOY
- Contact Length - Post :
- 0.125 3.18mm
- Contact Finish - Post :
- Tin
- Published :
- 2008
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Fastening Type :
- Push-Pull
- Pitch :
- 2.54mm
- Factory Lead Time :
- 17 Weeks
- Gender :
- Male
- Insulation Color :
- Black
- Shrouding :
- Unshrouded
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Number of Rows :
- 2
- Contact Plating :
- Gold
- Mount :
- Through Hole
- Insulation Height :
- 0.090 2.29mm
- Current Rating (Amps) :
- 3A
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Overall Contact Length :
- 0.533 13.55mm
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Kinked Pin, Solder
- Contact Finish - Mating :
- Gold
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Operating Temperature :
- -65°C~105°C
- Style :
- Board to Board or Cable
- Series :
- AMPMODU Mod II
- Number of Contacts :
- 2
- Contact Length - Mating :
- 0.318 8.08mm
- Number of Positions :
- 2
- Datasheets
- 5-146265-1
AMPMODU Mod II Series 2-Row Header, Breakaway Kinked Pin, Solder Copper Alloy Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 2-Position Board to Board or Cable 0.090 2.29mm Height
5-146265-1 Overview
Packaging is in the form of Header, Breakaway.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod II Series.There is a mounting hole at Through Hole.Devices operate at -65°C~105°C operating temperatures.
5-146265-1 Features
AMPMODU Mod II series
5-146265-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-146265-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
