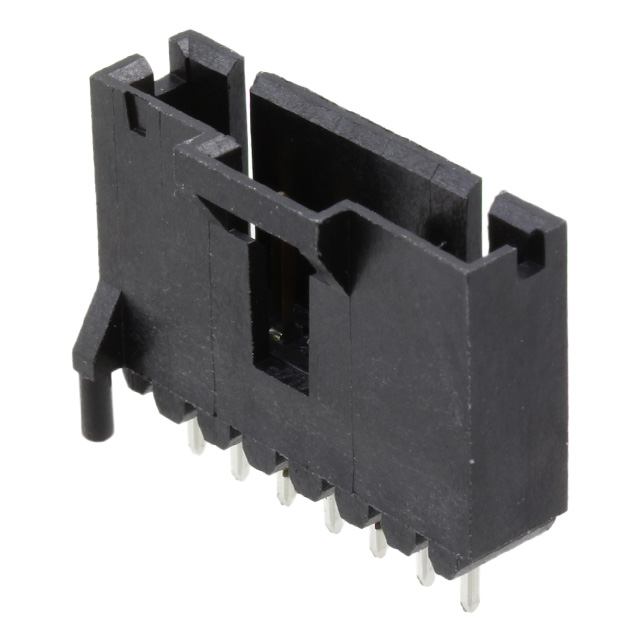

5-104809-6
Or copy the link below:
- Mfr.Part #
- 5-104809-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 2.54MM
- Stock
- 2,847
- In Stock ：
- 2,847
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Length :
- 20.32mm
- Orientation :
- Vertical
- Approval Agency :
- CSA
- Published :
- 2008
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Press-Fit, Solder
- Pitch - Mating :
- 0.100 2.54mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Series :
- AMPMODU MTE
- Plating :
- Gold
- Pitch :
- 2.54mm
- Style :
- Board to Board or Cable
- Number of Rows :
- 1
- Current Rating (Amps) :
- 3A
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.130 3.30mm
- Mating Post Length :
- 5.842mm
- Contact Material :
- Brass
- PCB Mount Retention :
- With
- Housing Material :
- Thermoplastic
- Number of Positions :
- 7
- Plating Thickness :
- 2.54μm
- Contact Shape :
- Square
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.535 13.60mm
- ELV :
- Compliant
- Mating Retention :
- With
- Depth :
- 6.66mm
- Current Rating :
- 3A
- Connector Type :
- Header
- Insulation Resistance :
- 5GOhm
- Contact Finish - Mating :
- Gold
- Contact Resistance :
- 15mOhm
- Color :
- Black
- Gender :
- Male
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Max Operating Temperature :
- 105°C
- Operating Temperature :
- -65°C~105°C
- Radiation Hardening :
- No
- Packaging :
- Tube
- Height :
- 13.79mm
- PCB Mount Alignment :
- Without
- Length - Tail :
- 3.3mm
- Factory Lead Time :
- 20 Weeks
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Feature :
- Board Guide, Keying Slot
- Contact Gender :
- Male
- Fastening Type :
- Latch Holder
- Row Spacing :
- 2.54 mm
- Min Operating Temperature :
- -65°C
- Contact Finish - Post :
- Tin
- Number of Contacts :
- 7
- Mount :
- Surface Mount, Through Hole
- Overall Contact Length :
- 0.545 13.84mm
- Contact Current Rating :
- 3A
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.230 5.84mm
- REACH SVHC :
- No SVHC
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- PCB Thickness :
- 1.58mm
- Insulation Material :
- Thermoplastic
- Contact Plating :
- Gold, Tin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Datasheets
- 5-104809-6
AMPMODU MTE Series 1-Row Header Press-Fit, Solder Brass Tube Through Hole Gold Thermoplastic 7-Position Board to Board or Cable 0.535 13.60mm Height
5-104809-6 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the AMPMODU MTE Series.If the temperature is below 105°C, it's best to use it.-65°C is the minimum temperature for this device.There are a variety of possible applications for this device, including Automotive, General Purpose, Medical, Telecommunications.Several benefits come from the Board Guide, Keying Slot feature.There is a mounting hole at Surface Mount, Through Hole.Devices operate at -65°C~105°C operating temperatures.
5-104809-6 Features
AMPMODU MTE series
5-104809-6 Applications
There are a lot of TE Connectivity AMP Connectors
5-104809-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
