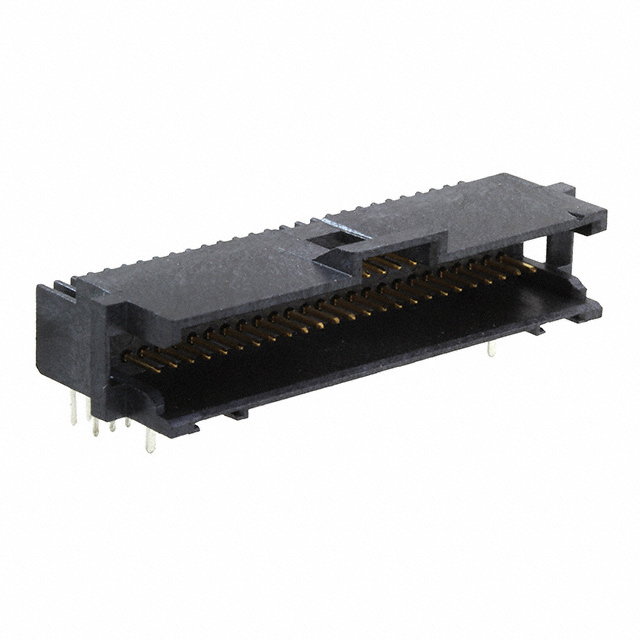

5-104477-5
Or copy the link below:
- Mfr.Part #
- 5-104477-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 50POS 1.27MM
- Stock
- 393
- In Stock ：
- 393
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- DIN Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Connector Type :
- Header
- Filter Feature :
- No
- Length :
- 37.95mm
- Number of Rows :
- 2
- Published :
- 2008
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Operating Supply Voltage :
- 30V
- Current Rating :
- 1A
- Termination :
- Solder
- Voltage - Rated :
- 30VAC
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Thermoplastic
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Polarization Key :
- POLARIZED HOUSING
- Contact Shape :
- Circular
- Depth :
- 13.72mm
- Number of Positions :
- 50
- Number Of PCB Rows :
- 2
- Voltage - Rated AC :
- 30V
- Body Breadth :
- 0.35 inch
- Number of Positions Loaded :
- All
- Lead Length :
- 3.68mm
- Contact Resistance :
- 15mOhm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Length - Mating :
- 0.125 3.18mm
- Contact Type :
- Male Pin
- Series :
- AMPMODU System 50
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- Insulation Resistance :
- 1000000000Ohm
- Number of Conductors :
- ONE
- JESD-609 Code :
- e3
- Fastening Type :
- Latch Holder
- Pitch - Mating :
- 0.050 1.27mm
- Reference Standard :
- UL
- Reliability :
- COMMERCIAL
- Housing Color :
- Black
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mount :
- Through Hole
- Orientation :
- RIGHT ANGLE
- Mating Post Length :
- 3.175mm
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Keyed :
- No
- Insulation Height :
- 0.290 7.37mm
- Style :
- Board to Board or Cable
- Insertion Force-Max :
- 1.39 N
- Contact Material :
- COPPER ALLOY
- Rated Current (Signal) :
- 3.6A
- Approval Agency :
- CSA
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Operating Temperature :
- -65°C~105°C
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 30μin
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.145 3.68mm
- Shrouding :
- Shrouded - 2 Wall
- Packaging :
- Tube
- Mating Contact Pitch :
- 0.05 inch
- Feature :
- Board Guide
- Factory Lead Time :
- 19 Weeks
- Mixed Contacts :
- No
- Max Voltage Rating (AC) :
- 30V
- Contact Current Rating :
- 1A
- IEC Conformance :
- No
- Datasheets
- 5-104477-5
AMPMODU System 50 Series 2-Row Header Solder Copper Alloy Tube Through Hole, Right Angle Gold Thermoplastic 50-Position Board to Board or Cable 0.290 7.37mm Height
5-104477-5 Overview
This product is packaged in a Header carton.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Tube case.It's part of the AMPMODU System 50 Series.An application for the device could be Automotive, General Purpose, Medical, Telecommunications.Many aspects of its Board Guide feature increase its effectiveness.Mounting of the part is based on Through Hole.30V is the operating voltage for this memory.It runs at -65°C~105°C Operating Temperature.
5-104477-5 Features
AMPMODU System 50 series
5-104477-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-104477-5 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
