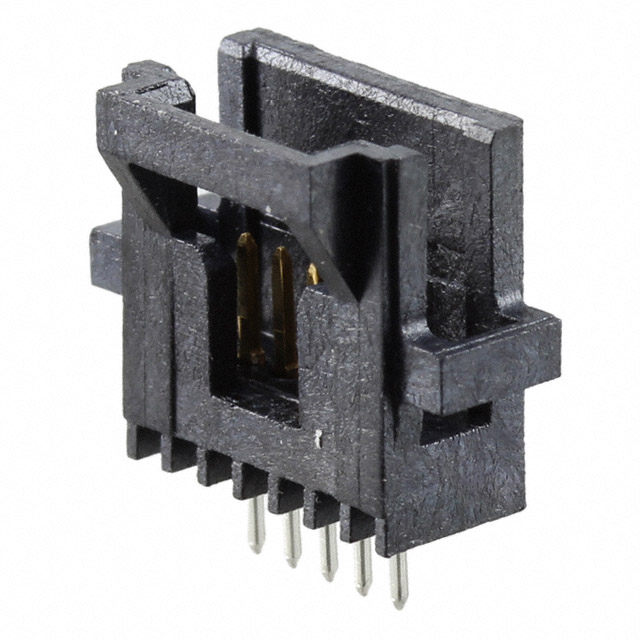

5-104071-2
Or copy the link below:
- Mfr.Part #
- 5-104071-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 1.27MM
- Stock
- 3,318
- In Stock ：
- 3,318
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Voltage - Rated AC :
- 30V
- Current Rating :
- 1A
- Mount :
- Through Hole
- Withdrawl Force-Min :
- .2224 N
- Number of Positions :
- 5
- Number of Rows :
- 1
- Insulation Material :
- Thermoplastic
- Number of Conductors :
- ONE
- Series :
- AMPMODU System 50
- Body Breadth :
- 0.244 inch
- Approval Agency :
- CSA
- Connector Type :
- Header
- Termination :
- Solder
- Orientation :
- Vertical
- Insulation Height :
- 0.390 9.91mm
- PCB Contact Pattern :
- RECTANGULAR
- Max Voltage Rating (AC) :
- 30V
- Housing Color :
- Black
- Contact Length - Post :
- 0.100 2.54mm
- JESD-609 Code :
- e3
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 2 Wall
- Number of Positions Loaded :
- All
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Filter Feature :
- No
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Number Of PCB Rows :
- 1
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Lead Length :
- 2.54mm
- Pitch - Mating :
- 0.050 1.27mm
- Fastening Type :
- Latch Holder
- Mixed Contacts :
- No
- Contact Material :
- COPPER ALLOY
- Contact Shape :
- Circular
- Style :
- Board to Board or Cable
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- IEC Conformance :
- No
- Operating Supply Voltage :
- 30V
- Voltage - Rated :
- 30VAC
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tube
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 19 Weeks
- Durability :
- 200 Cycles
- PCB Thickness :
- 1.397mm
- Depth :
- 6.19mm
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -65°C~105°C
- Keyed :
- No
- Plating Thickness :
- 30μin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2005
- Mating Post Length :
- 2.54mm
- Polarization Key :
- CENTER
- Contact Current Rating :
- 1A
- Contact Length - Mating :
- 0.125 3.18mm
- Row Spacing :
- 2.54 mm
- Length :
- 12.54mm
- ELV :
- Compliant
- Reliability :
- COMMERCIAL
- RoHS Status :
- RoHS Compliant
- Datasheets
- 5-104071-2
AMPMODU System 50 Series 1-Row Header Solder Copper Alloy Tube Through Hole Gold Thermoplastic 5-Position Board to Board or Cable 0.390 9.91mm Height
5-104071-2 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the AMPMODU System 50 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Medical, Telecommunications.There is a mounting hole at Through Hole.It runs on 30V voltage.Devices operate at -65°C~105°C operating temperatures.
5-104071-2 Features
AMPMODU System 50 series
5-104071-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-104071-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
