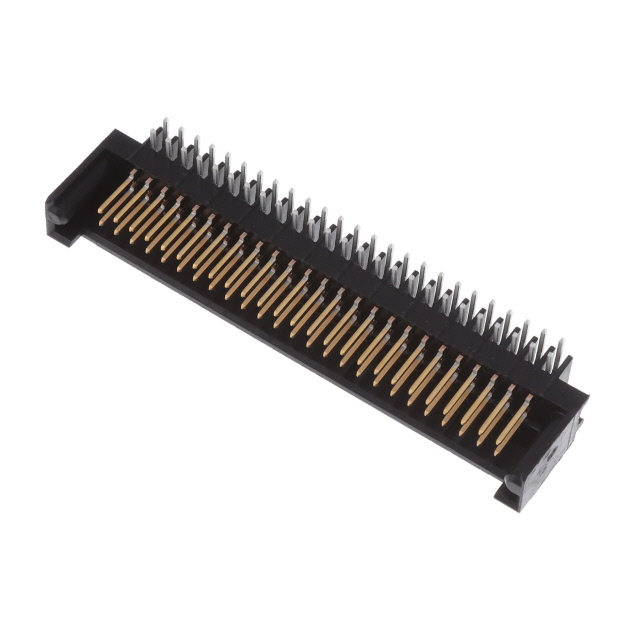

5-102589-5
Or copy the link below:
- Mfr.Part #
- 5-102589-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 50POS 2.54MM
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Insulation Height :
- 0.319 8.10mm
- Housing Color :
- Black
- Radiation Hardening :
- No
- Max Voltage Rating (AC) :
- 250V
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- RIGHT ANGLE
- MIL Conformance :
- No
- Contact Resistance :
- 12mOhm
- Style :
- Board to Board or Cable
- Series :
- AMPMODU Mod II
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- Connector Type :
- Header
- Factory Lead Time :
- 4 Weeks
- Contact Finish - Mating :
- Gold
- PCB Thickness :
- 1.397mm
- Insulation Resistance :
- 1GOhm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Approval Agency :
- CSA
- Contact Finish - Post :
- Tin
- Current Rating :
- 3A
- Depth :
- 19.35mm
- Voltage - Rated :
- 250VAC
- Operating Supply Voltage :
- 250V
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Thermoplastic
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Material :
- Phosphor Bronze
- Filter Feature :
- No
- Published :
- 2008
- Length :
- 73.15mm
- Mating Alignment :
- With
- UL Flammability Code :
- 94V-0
- Shrouding :
- Shrouded - 3 Wall
- Termination :
- Solder
- PCB Mount Alignment :
- Without
- Fastening Type :
- Push-Pull
- PCB Mounting Orientation :
- RIGHT ANGLE
- ELV :
- Compliant
- Contact Gender :
- Male
- Lead Free :
- Lead Free
- Pitch - Mating :
- 0.100 2.54mm
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Mounting Type :
- Through Hole, Right Angle
- Operating Temperature :
- -65°C~105°C
- Lead Length :
- 3.175mm
- Voltage - Rated AC :
- 250V
- DIN Conformance :
- No
- Mount :
- Through Hole
- Packaging :
- Tube
- Pbfree Code :
- yes
- Mixed Contacts :
- No
- Contact Length - Mating :
- 0.320 8.13mm
- IEC Conformance :
- No
- Contact Length - Post :
- 0.125 3.18mm
- Contact Current Rating :
- 3A
- Insulation Material :
- Polyester
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 50
- Datasheets
- 5-102589-5
AMPMODU Mod II Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Polyester 50-Position Board to Board or Cable 0.319 8.10mm Height
5-102589-5 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tube case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-65°C~105°C Operating Temperature is the default operating temperature for the device.
5-102589-5 Features
AMPMODU Mod II series
5-102589-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-102589-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
