487925-8

Share

Or copy the link below:

Mfr.Part #
487925-8
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN FFC VERT 11POS 2.54MM PCB
Stock
9,313
In Stock :
9,313

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
FFC, FPC (Flat Flexible) Connector Assemblies
Termination :
Solder
Connector/Contact Type :
Contacts, Vertical - 1 Sided
Current Rating :
1A
Filter Feature :
No
PCB Contact Pattern :
RECTANGULAR
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
MIL Conformance :
No
Factory Lead Time :
13 Weeks
Housing Material :
Thermoplastic
Pitch :
0.100 2.54mm
RoHS Status :
RoHS Compliant
Feature :
Zero Insertion Force (ZIF)
Length :
34.8mm
Sealable :
No
Plating Thickness :
3.81μm
Gender :
FEMALE
Cable End Type :
Straight
Option :
GENERAL PURPOSE
Contact Material :
Phosphor Bronze
Dielectric Withstanding Voltage :
500VAC V
Packaging :
Tube
Flammability Rating :
UL94 V-0
Locking Feature :
Slide Lock
Number of Rows :
1
Max Operating Temperature :
105°C
DIN Conformance :
No
Min Operating Temperature :
-55°C
Contact Style :
IDC
Durability :
50 Cycles
Rated Current (Signal) :
1A
Number of Conductors :
ONE
Series :
AMPMODU
Mount :
Through Hole
Mating Connector Lock :
With
UL Flammability Code :
94V-0
IEC Conformance :
No
Circuit Application :
Signal
ELV :
Compliant
Pbfree Code :
yes
PCB Thickness :
2.36mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Length - Tail :
3.94mm
Number of Positions :
11
Contact Finish Thickness :
150.0μin 3.81μm
Mounting Type :
Through Hole
Height Above Board :
0.310 7.87mm
Number Of PCB Rows :
1
Reference Standard :
UL
ECCN Code :
EAR99
Mating Alignment :
Without
Body Breadth :
0.24 inch
Connector Type :
Connector, Receptacle, Socket
Flat Flex Type :
FFC
Contact Finish :
Tin
Orientation :
Vertical
Operating Supply Voltage :
150V
Additional Feature :
ZIF-LINE
Contact Pattern :
RECTANGULAR
Lead Free :
Lead Free
Withdrawl Force-Min :
ZIF N
Reliability :
COMMERCIAL
FFC, FCB Thickness :
0.12mm
Insulation Resistance :
500MOhm
Insertion Force-Max :
ZIF N
Housing Color :
Black
Published :
2007
Mixed Contacts :
No
Depth :
6.09mm
Total Number of Contacts :
11
Datasheets
487925-8
Introducing FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 487925-8 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, 487925-8 pinout, 487925-8 datasheet PDF, 487925-8 amp .Beyond FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 487925-8 ,we also offer 0527450497, 1-1734592-0, 62674-161121ALF, Our vast inventory has you covered. Contact us now for immediate solutions.

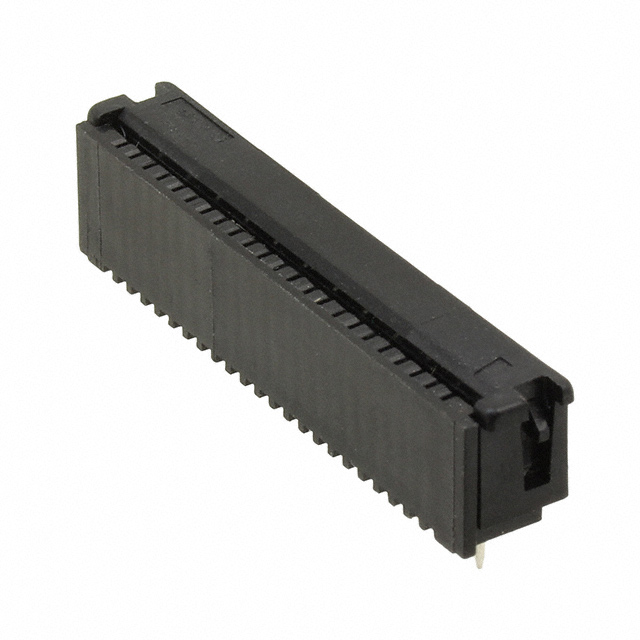

TE Connectivity AMP Connectors 487925-8


AMPMODU Series FFC Contacts, Vertical - 1 Sided Tube 0.100 2.54mm Solder 11 Positions Through Hole Tin

487925-8 Overview


The product comes in a package of Connector, Receptacle, Socket.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the AMPMODU Series of products.Additionally, there are other features, such as ZIF-LINE.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -55°C at all times.A number of features make it more powerful because of its Zero Insertion Force (ZIF) feature.Through Hole mounts the part.A voltage of 150V is required to operate this memory.

487925-8 Features


AMPMODU series


487925-8 Applications


There are a lot of TE Connectivity AMP Connectors
487925-8 FFC, FPC (Flat Flexible) Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
