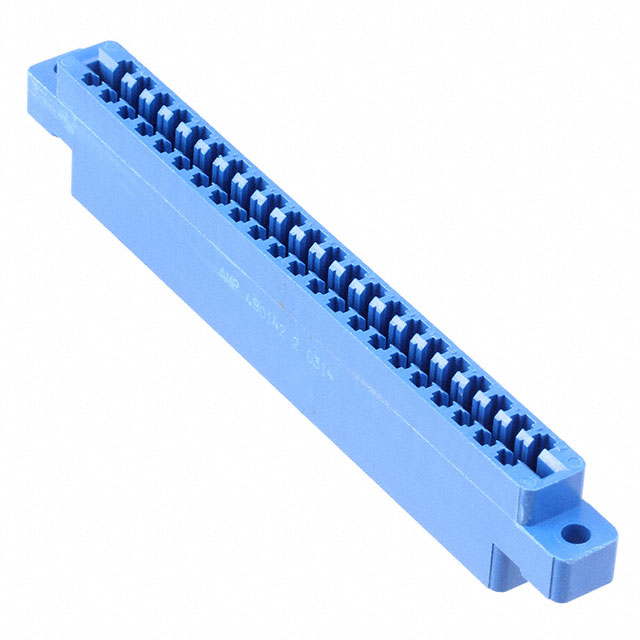

480142-2
Or copy the link below:
- Mfr.Part #
- 480142-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE HSG 44POS .156 BLK
- Stock
- 119
- In Stock ：
- 119
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Housings
- Current Rating :
- 5A
- Housing Color :
- Black, Blue
- Additional Feature :
- POLARIZED
- Reliability :
- COMMERCIAL
- Body Depth :
- 0.7 inch
- Mounting Type :
- Panel Mount
- ELV :
- Compliant
- Contact Material :
- Bronze
- PCB Thickness :
- 1.778mm
- Termination :
- Crimp
- Body Breadth :
- 0.35 inch
- Packaging :
- Bulk
- Operating Supply Voltage :
- 250V
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -65°C~125°C
- Withdrawl Force-Min :
- .556 N
- Pbfree Code :
- yes
- Number of Rows :
- 22
- Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Feature :
- Flange
- Filter Feature :
- No
- IEC Conformance :
- No
- Reference Standard :
- UL, CSA
- Material - Insulation :
- Diallyl Phthalate (DAP)
- Preloaded :
- No
- Height :
- 8.89mm
- Lead Free :
- Not Applicable
- MIL Conformance :
- No
- Pitch :
- 0.156 3.96mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Published :
- 1997
- Card Type :
- Non Specified - Dual Edge
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Mixed Contacts :
- No
- Contact Pattern :
- RECTANGULAR
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- HTS Code :
- 8536.69.40.40
- DIN Conformance :
- No
- Contact Gender :
- FEMALE
- Length :
- 108.7374mm
- Mount :
- Panel
- Series :
- Amp-Leaf
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Number of Positions :
- 44
- Total Number of Contacts :
- 44
- Contact Current Rating :
- 5A
- Connector Type :
- Receptacle, Socket
- Color :
- Black
- Factory Lead Time :
- 12 Weeks
- Note :
- Contacts Not Included
- Datasheets
- 480142-2
