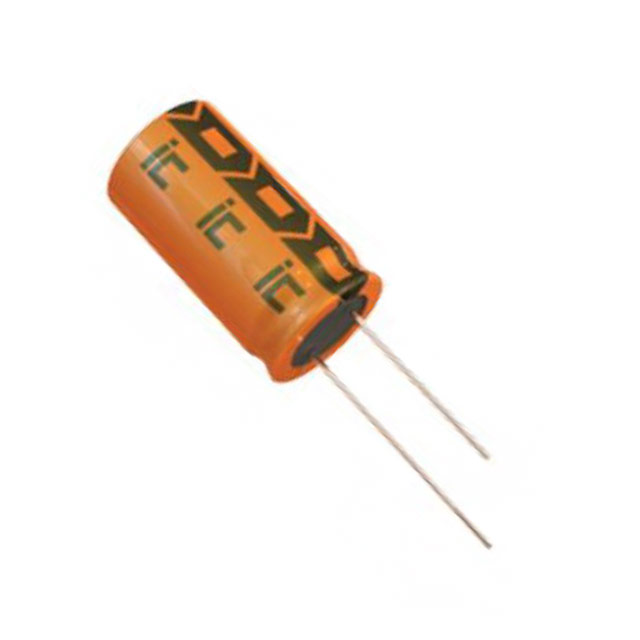

478KBM025M

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Aluminum Electrolytic Capacitors

Leakage Current :

1.175mA

Terminal Finish :

Matte Tin (Sn)

Tan Delta :

0.22

Voltage - Rated :

25V

Ripple Current @ Low Frequency :

2.992A @ 120Hz

RoHS Status :

ROHS3 Compliant

Tolerance :

±20%

Applications :

GENERAL PURPOSE

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

ECCN Code :

EAR99

Mounting Type :

Through Hole

Series :

KBM

Rated (DC) Voltage (URdc) :

25V

Number of Terminations :

2

Height Seated (Max) :

1.457 37.00mm

Surface Mount :

No

Lead Spacing :

0.295 7.50mm

Dielectric Material :

ALUMINUM (WET)

JESD-609 Code :

e3

Polarization :

Polar

Capacitance :

4700µF

Lifetime @ Temp :

10000 Hrs @ 105°C

Impedance :

18mOhm

Operating Temperature :

-40°C~105°C

Ripple Current @ High Frequency :

3.52A @ 100kHz

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ESR (Equivalent Series Resistance) :

78mOhm @ 120Hz

Size / Dimension :

0.709Dia 18.00mm

Packaging :

Bulk

Terminal Shape :

Wire

Package / Case :

Radial, Can

Factory Lead Time :

22 Weeks
