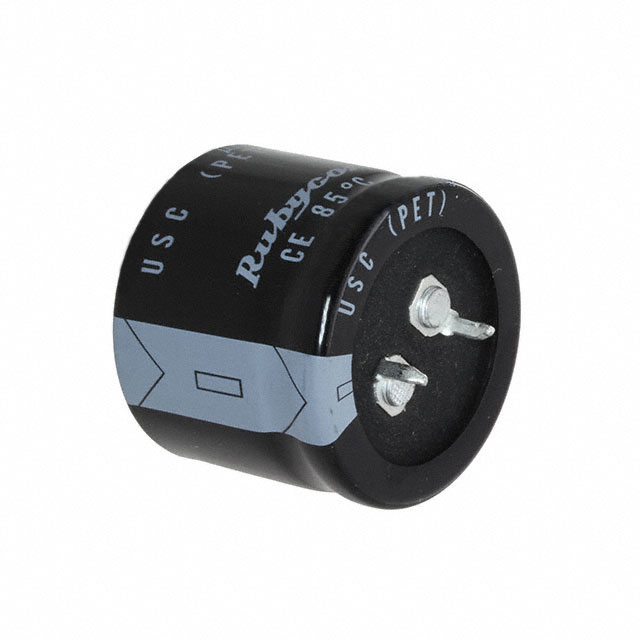

450USC150MEFCSN30X25

Manufacturer :

Rubycon

Product Category :

Aluminum Electrolytic Capacitors

Terminal Finish :

Tin (Sn)

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Leakage Current :

0.77943mA

Terminal Pitch :

10mm

Lifetime @ Temp :

3000 Hrs @ 85°C

Series :

USC

Factory Lead Time :

18 Weeks

Height Seated (Max) :

1.063 27.00mm

Packaging :

Bulk

Lead Spacing :

0.394 10.00mm

Operating Temperature :

-25°C~85°C

JESD-609 Code :

e3

Diameter :

30mm

Applications :

GENERAL PURPOSE

Capacitance :

150µF

Package / Case :

Radial, Can - Snap-In

ECCN Code :

EAR99

Published :

2012

Mount :

Through Hole

Life (Hours) :

3000 hours

Number of Terminations :

2

RoHS Status :

ROHS3 Compliant

Ripple Current :

1.29A

Polarization :

Polar

Ripple Current @ Low Frequency :

1.29A @ 120Hz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current @ High Frequency :

1.806A @ 10kHz

Dielectric Material :

ALUMINUM (WET)

Size / Dimension :

1.181Dia 30.00mm

Pbfree Code :

yes

Voltage - Rated DC :

450V

Tan Delta :

0.25

Height :

25mm

Tolerance :

±20%

Mounting Type :

Through Hole

Lead Pitch :

10.0076mm
