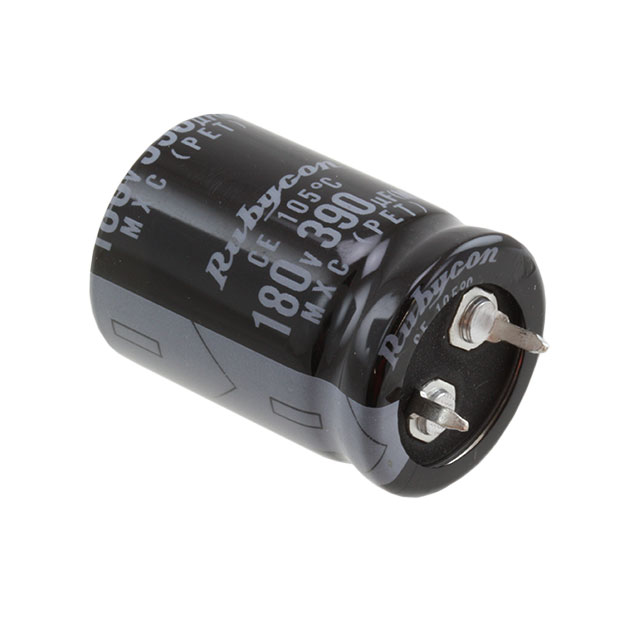

450MXC180MEFCSN25X40

Manufacturer :

Rubycon

Product Category :

Aluminum Electrolytic Capacitors

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Pitch :

10.0076mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Capacitance :

180µF

Lead Spacing :

0.394 10.00mm

Height :

40mm

Ripple Current :

950mA

Tan Delta :

0.2

Pbfree Code :

yes

Factory Lead Time :

18 Weeks

Polarization :

Polar

Operating Temperature :

-25°C~105°C

Published :

2008

Series :

MXC

Ripple Current @ Low Frequency :

950mA @ 120Hz

Terminal Pitch :

10mm

Number of Terminations :

2

Diameter :

25mm

Life (Hours) :

3000 hours

Applications :

GENERAL PURPOSE

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Voltage - Rated DC :

450V

Leakage Current :

0.85381mA

Packaging :

Bulk

Lifetime @ Temp :

3000 Hrs @ 105°C

Dielectric Material :

ALUMINUM (WET)

Tolerance :

±20%

Package / Case :

Radial, Can - Snap-In

ECCN Code :

EAR99

Mounting Type :

Through Hole

Height Seated (Max) :

1.654 42.00mm

Size / Dimension :

0.984Dia 25.00mm

Terminal Finish :

Tin (Sn)

Ripple Current @ High Frequency :

1.33A @ 10kHz

Mount :

Through Hole
