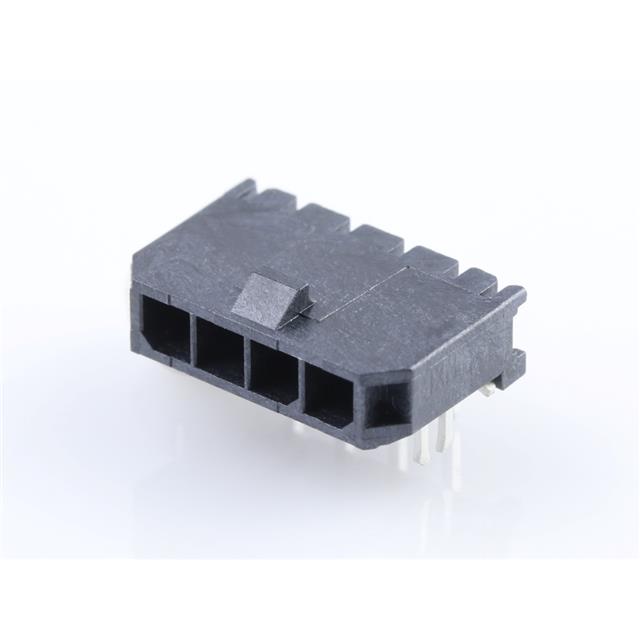

43650-0405

Share

Or copy the link below:

Mfr.Part #
43650-0405
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
MICROFIT 3.0 SR RA TH CLIP 30AU
Stock
2,744
In Stock :
2,744

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Headers, Male Pins
Board Mounting Option :
PEG
Pitch :
3 mm
Packaging :
Tray
Contact Gender :
Pin (Male)
Termination Type :
Solder
Orientation :
RIGHT ANGLE
Mounting Style :
Through Hole
Subcategory :
Headers and Wire Housings
Current Rating :
8.5 A
Mounting Angle :
RIGHT ANGLE
Current Rating (Max) :
8.5/Contact(A)
Maximum Operating Temperature :
+ 105 C
Number of Terminals :
4
RoHS :
Details
Total Number of Contacts :
4
Product Category :
Headers and Wire Housings
ECCN Code :
EAR99
Product Status :
Active
Additional Feature :
POLARIZED
Terminal Pitch :
2.9972 mm
Empty Shell :
No
Package :
Box
MIL Conformance :
No
Contact Plating :
Gold Over Nickel
UL Flammability Code :
94V-0
Option :
GENERAL PURPOSE
Application :
Power
Connector Type :
RECTANGULAR POWER CONNECTOR
Body Depth :
0.39 inch
Voltage Rating Max :
600V
Mounting Type :
BOARD AND CABLE
Contact Arrangement :
S0P4
Mating Information :
43645
Reach Compliance Code :
Compliant
Mounting Option 1 :
LOCKING
Housing Color :
Black
Minimum Operating Temperature :
- 40 C
Voltage Rating :
600 V
Pbfree Code :
yes
Gender :
HDR
Contact Type :
-
Housing Material :
Liquid Crystal Polymer (LCP)
Type :
Power
Operating Temperature Max Deg. C :
105C
Contact Finish Termination :
TIN/LEAD OVER NICKEL
Insulator Color :
Black
Manufacturer :
Molex
Operating Temperature Min Deg. C :
-40C
Product Diameter (mm) :
Not Required(mm)
Reliability :
COMMERCIAL
Terminal Length :
0.125 inch
Number of Contacts :
4(POS)
Number of Rows :
1 Row
Number of Positions :
4 Position
Flammability Rating :
UL 94 V-0
Body Breadth :
0.219 inch
Brand :
Molex
Body Orientation :
RIGHT ANGLE
Shell Material :
LIQUID CRYSTAL POLYMER
Product Length (mm) :
15.65(mm)
Contact Material :
Brass Alloy
HTS Code :
8536.69.40.30
Durability :
30 Cycles
Product Type :
Headers and Wire Housings
Tradename :
Micro-Fit 3.0
Termination Style :
Solder Pin
Contact Resistance :
10 MΩ
Operating Temp Range :
-40C to 105C
Contact Style :
SQ PIN-SKT
Termination Post Length :
3.18 mm
Product Height (mm) :
5.57(mm)
Number of Ports :
1(Port)
Insulation Resistance :
1000000000 Ω
Series :
43650
Accessory Type :
-
Product :
Headers
Flammability :
94V-0
Body/Shell Style :
Receptacle
DIN Conformance :
No
Mixed Contacts :
No
Pitch (mm) :
3(mm)
Dielectric Withstanding Voltage :
1000VAC V
IEC Conformance :
No
Reference Standard :
UL
Product Depth (mm) :
9.9(mm)
Insertion Force-Max :
11.5648 N
Plating Thickness :
30u inch
Filter Feature :
No
Termination Method :
Solder
Introducing Headers, Male Pins Molex 43650-0405 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:BOARD AND CABLE, Type:Power, 43650-0405 pinout, 43650-0405 datasheet PDF, 43650-0405 amp .Beyond Headers, Male Pins Molex 43650-0405 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.
