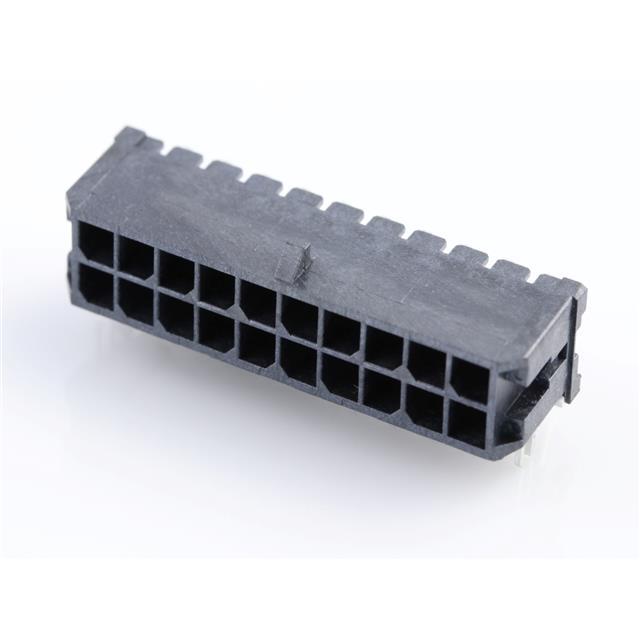

43045-2008

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Ports :

1(Port)

Pitch :

3.0000 mm

Product Depth (mm) :

15.4(mm)

Product Length :

34.15 mm

Insertion Force-Max :

11.5648 N

Mount :

Surface Mount

Current Rating :

5 A

Operating Temp Range :

-40C to 105C

Contact Finish Termination :

TIN (100) OVER NICKEL (50)

Halogen Free :

Low Halogen

Operating Temperature Min Deg. C :

-40C

Number of Contacts :

20(POS)

Total Number of Contacts :

20

Connector Type :

RECTANGULAR POWER CONNECTOR

Mounting Type :

BOARD

Mounting Option 1 :

LOCKING

Product Length (mm) :

34.15(mm)

Product Type :

Headers and Wire Housings

Option :

GENERAL PURPOSE

Brand :

Molex

Reliability :

COMMERCIAL

Glow Wire Compliant :

Compliant

Reach Compliance Code :

Compliant

Operating Temperature Max Deg. C :

105C

Accessory Type :

-

Package :

Box

ECCN Code :

EAR99

Country of Origin :

US

Contact Gender :

Male

Insulation Resistance :

1000000000 Ω

Row Spacing :

3 mm

Mounting Style :

Surface Mount

Contact Style :

SQ PIN-SKT

Flammability Rating :

UL 94 V-0

Additional Feature :

TAPE AND REEL PACKAGING

Number of Rows :

2

Tradename :

Micro-Fit 3.0

Contact Material :

Brass

HTS Code :

8536.69.40.30

Lifecycle Status :

Production (Last Updated: 2 years ago)

Voltage Rating :

600 V

Series :

43045

Packaging :

Tape and Reel

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Filter Feature :

No

Plating :

Tin

Rated Current (Signal) :

2.5 A

IEC Conformance :

No

Gender :

Header

Empty Shell :

No

Pitch (mm) :

3(mm)

Plating Thickness :

30u inch

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Housing Material :

Polymer

Current Rating (Max) :

8.5/Contact(A)

Voltage Rating Max :

600V

Product Diameter (mm) :

Not Required(mm)

Contact Plating :

Gold

Minimum Operating Temperature :

- 40 C

UL Flammability Code :

94V-0

Product :

Headers

Body Depth :

0.606 inch

Manufacturer :

Molex

Body Breadth :

0.29 inch

Pbfree Code :

yes

Maximum Operating Temperature :

+ 105 C

Reference Standard :

UL

Subcategory :

Headers and Wire Housings

Body Orientation :

RIGHT ANGLE

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Body/Shell Style :

Receptacle

DIN Conformance :

No

Board Mounting Option :

HOLE .086-.098

Termination Type :

Surface Mount

Product Category :

Headers and Wire Housings

Orientation :

RIGHT ANGLE

Mixed Contacts :

No

JESD-609 Code :

e3

Type :

Power

RoHS :

Compliant

Number of Positions :

20

Number of Terminals :

20

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Insulator Color :

Black

MIL Conformance :

No

Terminal Pitch :

2.9972 mm

Mounting :

Surface Mount

Flammability :

94V-0

Termination Style :

Solder

Operating Temperature :

-40 to 105 °C

Contact Arrangement :

S0P20

Termination :

SMD/SMT

Contact Resistance :

10 MΩ

Termination Method :

Solder

Mounting Angle :

RIGHT ANGLE

Application :

Power

Number of Circuits :

20

Housing Color :

Black

Product Height (mm) :

8.77(mm)

Product Status :

Active

Contact Type :

-
