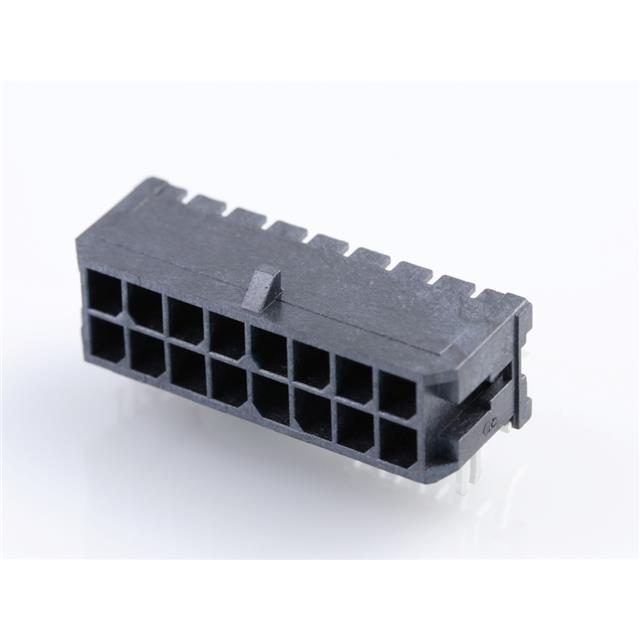

43045-1608

Manufacturer :

Molex

Product Category :

Headers, Male Pins

IEC Conformance :

No

Color :

Black

Halogen Free :

Low Halogen

Product Type :

Headers and Wire Housings

Number of Positions :

16

Body/Shell Style :

Receptacle

Option :

GENERAL PURPOSE

Contact Type :

-

Mounting Type :

BOARD

Product :

Headers

Contact Resistance :

10 MΩ

Voltage Rating :

250 V

Insulation Resistance :

1000000000 Ω

Product Depth (mm) :

15.4(mm)

Filter Feature :

No

MIL Conformance :

No

Pitch :

3 mm

Number of Contacts :

16(POS)

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Contact Plating :

Gold Over Nickel

Contact Material :

Brass Alloy

Packaging :

Tape and Reel

Application :

Power

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Reliability :

COMMERCIAL

Body Breadth :

0.29 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Row Spacing :

3 mm

DIN Conformance :

No

Plating Thickness :

30u inch

Lead Pitch :

3 mm

Min Operating Temperature :

-40 °C

Contact Gender :

Pin (Male)

Empty Shell :

No

Product Height (mm) :

8.77(mm)

Subcategory :

Headers and Wire Housings

Maximum Operating Temperature :

+ 105 C

Flammability :

94V-0

Number of Circuits :

16

HTS Code :

8536.69.40.30

Pbfree Code :

yes

Manufacturer :

Molex

Additional Feature :

TAPE AND REEL PACKAGING

Tradename :

Micro-Fit 3.0

Product Category :

Headers and Wire Housings

Brand :

Molex

Accessory Type :

-

Max Operating Temperature :

105 °C

Pitch (mm) :

3(mm)

Insulator Color :

Black

Product Length (mm) :

28.15(mm)

Type :

Wire to Board

Product Status :

Active

Mounting Angle :

RIGHT ANGLE

Housing Color :

Black

Termination Style :

Solder

Current Rating :

5 A

Glow Wire Compliant :

Compliant

Rated Current (Signal) :

2.5 A

Connector Type :

RECTANGULAR POWER CONNECTOR

Total Number of Contacts :

16

Reference Standard :

UL

Package :

Box

Voltage Rating (DC) :

250 V

Max Voltage Rating (DC) :

250.25 kV

Contact Finish Termination :

TIN (100) OVER NICKEL (50)

Terminal Pitch :

2.9972 mm

Contact Arrangement :

S0P16

Country of Origin :

US

JESD-609 Code :

e3

Number of Contact Rows :

2

Minimum Operating Temperature :

- 40 C

Flammability Rating :

UL94 V-0

Orientation :

RIGHT ANGLE

Mounting Style :

Surface Mount

Series :

43045

Number of Rows :

2

Current Rating (Max) :

5/Contact(A)

ECCN Code :

EAR99

Operating Temp Range :

-40C to 105C

Body Depth :

0.606 inch

Mounting Option 1 :

LOCKING

Board Mounting Option :

HOLE .086-.098

Reach Compliance Code :

Compliant

UL Flammability Code :

94V-0

Body Orientation :

RIGHT ANGLE

Termination Type :

Surface Mount

Contact Style :

SQ PIN-SKT

RoHS :

Compliant

Gender :

HDR

Lifecycle Status :

Production (Last Updated: 2 years ago)

Termination Method :

Solder

Voltage Rating Max :

600V

Mixed Contacts :

No

Housing Material :

Thermoplastic

Mount :

Surface Mount

Termination :

Solder

Plating :

Tin

Insertion Force-Max :

11.5648 N
