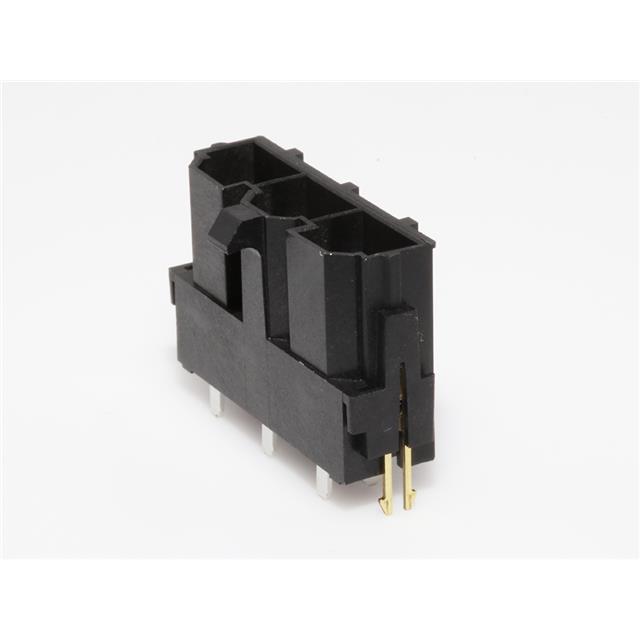

42819-3242

Manufacturer :

Molex

Product Category :

Headers, Male Pins

MIL Conformance :

No

PCB Contact Row Spacing :

4.3688 mm

Number of Contact Rows :

1

Board Mounting Option :

SPLIT BOARD LOCK

Reference Standard :

CSA, UL

Lifecycle Status :

Production (Last Updated: 2 years ago)

Body Orientation :

Straight

Mounting Angle :

Straight

Product Height (mm) :

21(mm)

Terminal Length :

0.327 inch

Contact Type :

-

Mounting Style :

Through Hole

Product Type :

Headers and Wire Housings

Mating Contact Pitch :

0.394 inch

Durability :

30 Cycles

Voltage Rating Max :

600V

Termination Method :

Solder

Contact Style :

SQ PIN-SKT

Contact Plating :

TIN OVER NICKEL

Contact Resistance :

1.5 MΩ

Accessory Type :

-

Operating Temp Range :

-40C to 105C

Product Diameter (mm) :

Not Required(mm)

Number of Terminals :

3

Option :

GENERAL PURPOSE

Manufacturer :

Molex

Row Spacing :

-

Pitch (mm) :

10(mm)

DIN Conformance :

No

Body Depth :

0.827 inch

Empty Shell :

No

Termination Post Length :

8.3 mm

Package :

Box

Product :

Headers

IEC Conformance :

No

ECCN Code :

EAR99

Country of Origin :

US

Reliability :

COMMERCIAL

Total Number of Contacts :

3

Tradename :

Mini-Fit Sr.

Connector Type :

RECTANGULAR POWER CONNECTOR

Termination Type :

Solder

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mounting Option 1 :

POLARIZED LCK

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

- 40 C

Operating Temperature Max Deg. C :

105C

Mounting Type :

BOARD

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Min Operating Temperature :

-40 °C

Dielectric Withstanding Voltage :

2200VAC V

Contact Gender :

Pin (Male)

Brand :

Molex

Termination Style :

Solder Pin

Contact Resistance Max :

1.5(mohm)

Number of Circuits :

3

Operating Temperature Min Deg. C :

-40C

Packaging :

Tray

UL Flammability Code :

94V-0

Product Status :

Active

Number of Ports :

1(Port)

Number of Positions :

3 Position

Insulation Resistance :

1000000000 Ω

Type :

Wire to Board

Body/Shell Style :

Receptacle

Polarization Key :

POLARIZED HOUSING

Voltage Rating :

600 V

Max Operating Temperature :

105 °C

Pitch :

10 mm

Contact Pattern :

RECTANGULAR

Plating :

Tin

Current Rating (Max) :

50/Contact(A)

Termination :

Through Hole

Rated Current (Signal) :

48 A

Plating Thickness :

100u inch

Contact Material :

Brass

Number of Contacts :

3(POS)

Mixed Contacts :

No

Insulator Color :

Black

Gender :

HDR

Number of Rows :

1 Row

Product Category :

Headers and Wire Housings

Terminal Pitch :

10.0076 mm

Current Rating :

50 A

Maximum Operating Temperature :

+ 105 C

Housing Material :

Nylon 4/6

RoHS :

Details

Withdrawl Force-Min :

4.8928 N

Shell Material :

Nylon

Additional Feature :

MINI-FIT SR, POLARIZED

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Through Hole

Product Depth (mm) :

14.1(mm)

Pbfree Code :

yes

Subcategory :

Headers and Wire Housings

Mounting Option 2 :

LOCKING

Orientation :

Vertical

Housing Color :

Black

Insertion Force-Max :

9.7856 N

Series :

42819

Flammability Rating :

UL 94 V-0

Number Of PCB Rows :

2

HTS Code :

8536.69.40.30

Product Length (mm) :

33.82(mm)

Body Breadth :

0.555 inch
