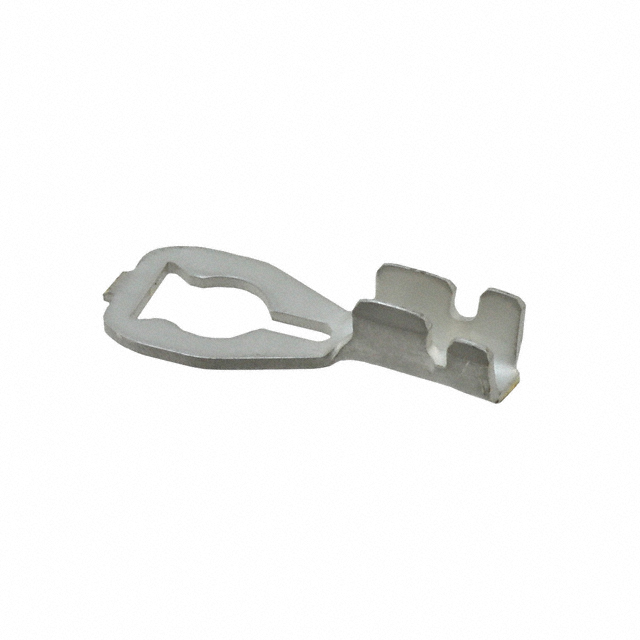

42169-2
Or copy the link below:
- Mfr.Part #
- 42169-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-18AWG #10
- Stock
- 48,000
- In Stock ：
- 48,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Terminal Material :
- Brass
- Product Category :
- Terminals
- Body Plating :
- Tin
- Reach Compliance Code :
- Compliant
- Lead Free :
- Lead Free
- Wire/Cable Diameter :
- 3.56 mm
- Wire Gauge (Max) :
- 14 AWG
- ELV :
- Compliant
- Wire/Cable Gauge :
- 18 AWG
- Underplate Material :
- Nickel
- Sealable :
- No
- Product :
- Screw Terminals
- Material Thickness :
- 760 μm
- Material :
- Brass
- Mounting Style :
- Screw
- Wire Size :
- 18 to 14, 18 AWG
- Insulation :
- Non-Insulated
- Body Material :
- Brass
- Termination Style :
- Crimp
- REACH SVHC :
- No SVHC
- Tongue Thickness :
- 762 µm
- Brand Name :
- AMP
- Brand :
- TE Connectivity / AMP
- Packaging :
- Tape and Reel
- Radiation Hardening :
- No
- Termination :
- Crimp
- Subcategory :
- Terminals
- Terminal Gender :
- FEMALE
- Depth :
- 8.71 mm
- Wire Cross Section :
- 2 mm2
- Insulation Diameter :
- 3.56 mm
- Voltage Rating :
- -
- Mount :
- Free Hanging
- Heavy Duty :
- No
- Contact Plating :
- Tin
- Product Length (mm) :
- 19.1(mm)
- Plating :
- Tin
- Product Depth (mm) :
- 8.71(mm)
- Length :
- 20.75 mm
- Stud Diameter :
- 4.82 mm
- RoHS :
- Details
- Orientation :
- Straight
- Mounting Angle :
- Straight
- HTS Code :
- 8536.90.40.00
- Wire/Cable Type :
- Discrete
- Product Type :
- Terminals
- Insulated Wire Support :
- yes
- Color :
- Not Required
- Inside Diameter :
- 1.77 mm
- Lifecycle Status :
- Production (Last Updated: 6 days ago)
- Current Rating :
- -
- Government Qualified :
- No
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Stud Size :
- 4.82 mm
- Contact Gender :
- -
- Rad Hardened :
- No
- Type :
- Spade Tongue Terminal
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Gender :
- -
- Contact Material :
- Brass
- Wire Gauge (Min) :
- 18 AWG
- Factory Lead Time :
- 10 Weeks, 1 Day
- Wire Gauge :
- 14 AWG
- Insulation Material :
- Not Insulated
- Plating Thickness :
- 1.01 µm
- Product Length :
- 19.1 mm
- Width :
- 8.71 mm
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Datasheets
- 42169-2
42169-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity stock available at Xinshop
