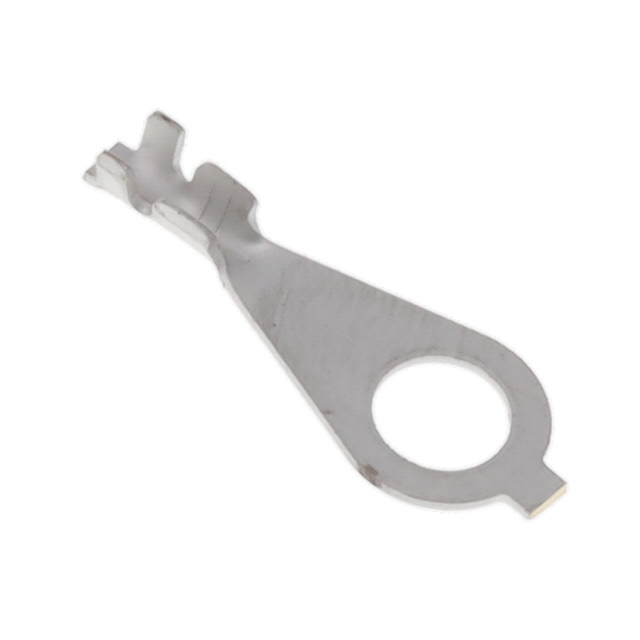

42164-2
Or copy the link below:
- Mfr.Part #
- 42164-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 20-24AWG CRIMP
- Stock
- 50,180
- In Stock ：
- 50,180
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Insulation :
- Non-Insulated
- Wire/Cable Diameter :
- 1.98 mm
- HTS Code :
- 8536.90.40.00
- Factory Lead Time :
- 7 Weeks
- Underplate Material :
- Nickel
- Published :
- 2004
- Length - Overall :
- 0.770 19.56mm
- Packaging :
- Tape and Reel (TR)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 24 AWG
- Width - Outer Edges :
- 0.312 7.92mm
- Diameter - Inside :
- 1.01 mm
- Wire Cross Section :
- 0.6 mm2
- Heavy Duty :
- No
- Terminal Type :
- Circular
- Termination :
- Crimp
- Insulation Diameter :
- 0.048 ~ 0.078 (1.22mm ~ 1.98mm)
- Body Material :
- Brass
- Material Thickness :
- 508μm
- Stud Diameter :
- 4.82 mm
- Tongue Thickness :
- 508μm
- Insulated Wire Support :
- yes
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Free Hanging
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Length :
- 19.56mm
- Pbfree Code :
- yes
- Number of Holes :
- 1
- Contact Plating :
- Tin
- Depth :
- 7.92mm
- Wire/Cable Type :
- Discrete
- ELV :
- Compliant
- Thickness :
- 0.020 0.51mm
- Wire Gauge (Max) :
- 20 AWG
- Plating Thickness :
- 1.01μm
- Lead Free :
- Not Applicable
- Contact Material :
- Phosphor Bronze
- Wire Gauge :
- 20-24 AWG
- Terminal and Terminal Block Type :
- RING TERMINAL
- Datasheets
- 42164-2
42164-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
