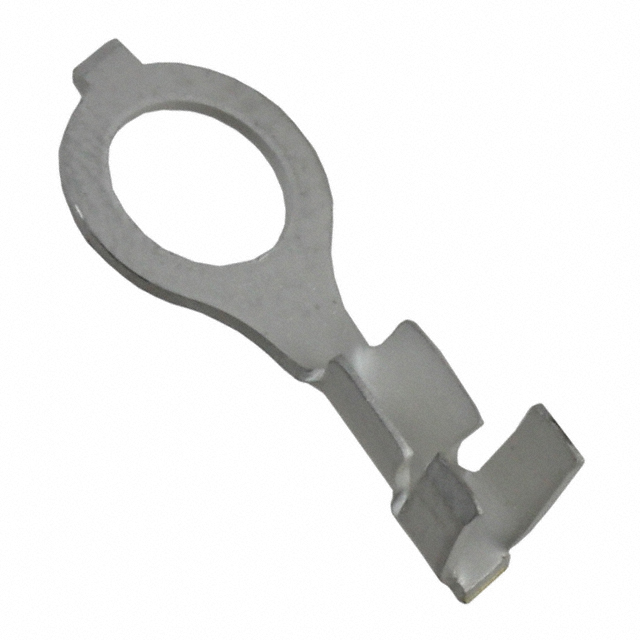

41582
Or copy the link below:
- Mfr.Part #
- 41582
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 20-24AWG #10
- Stock
- 4,237
- In Stock ：
- 4,237
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- ELV :
- Compliant
- Wire Gauge :
- 20-24 AWG
- Length - Overall :
- 0.630 16.00mm
- Contact Material :
- Brass
- Heavy Duty :
- No
- Terminal Type :
- Circular
- Depth :
- 7.37mm
- Material Thickness :
- 508μm
- Mounting Type :
- Free Hanging (In-Line)
- Insulation Diameter :
- 0.080 ~ 0.100 (2.03mm ~ 2.54mm)
- Number of Holes :
- 1
- Insulation :
- Non-Insulated
- Packaging :
- Tape and Reel (TR)
- Mount :
- Free Hanging
- Stud/Tab Size :
- 10 Stud
- Wire Gauge (Max) :
- 24 AWG
- Tongue Thickness :
- 510μm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Thickness :
- 0.020 0.51mm
- Lead Free :
- Not Applicable
- Orientation :
- Straight
- Factory Lead Time :
- 9 Weeks
- Diameter - Inside :
- 889 µm
- Stud Diameter :
- 5 mm
- Pbfree Code :
- yes
- Terminal Gender :
- FEMALE
- HTS Code :
- 8536.90.40.00
- ECCN Code :
- EAR99
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 20 AWG
- Termination :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Length :
- 16mm
- Wire Cross Section :
- 0.6 mm2
- Published :
- 1997
- Width - Outer Edges :
- 0.290 7.37mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Insulated Wire Support :
- yes
- Datasheets
- 41582
41582 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
