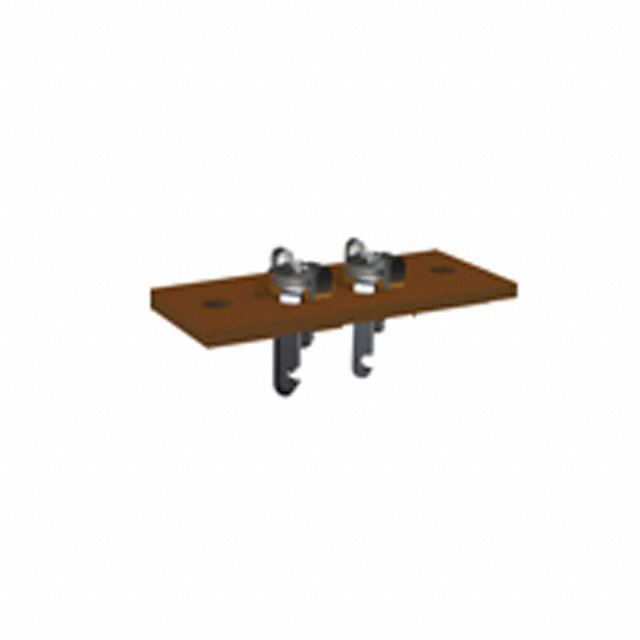

4158

Manufacturer :

Keystone Electronics Corp.

Product Category :

Terminal Strips and Turret Boards

Mount :

Free Hanging

ECCN Code :

EAR99

Packaging :

Cut Tape (CT)

Wire Gauge :

20-24 AWG

RoHS Status :

RoHS Compliant

Insulation Diameter :

0.080 ~ 0.100 (2.03mm ~ 2.54mm)

Stud Diameter :

4.34 mm

Pbfree Code :

yes

Stud Size :

M4

Insulated Wire Support :

yes

Factory Lead Time :

4 Weeks

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Terminal Gender :

FEMALE

Stud/Tab Size :

8 Stud

Wire Gauge (Max) :

24 AWG

Mounting Type :

Free Hanging (In-Line)

Underplate Material :

Nickel

Terminal Type :

Circular

Thickness :

0.020 0.51mm

Wire Cross Section :

0.6 mm2

Tongue Thickness :

510μm

Termination :

Crimp

ELV :

Compliant

Terminal and Terminal Block Type :

RING TERMINAL

HTS Code :

8536.90.40.00

Published :

2004

Wire Gauge (Min) :

20 AWG

Contact Plating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Heavy Duty :

No

Length - Overall :

0.630 16.00mm

Lead Free :

Not Applicable

Number of Holes :

1

Orientation :

Straight

Depth :

7.36mm

Length :

16mm

Material Thickness :

508μm

Diameter - Inside :

889 µm

Insulation :

Non-Insulated

Width - Outer Edges :

0.290 7.37mm

Contact Material :

Brass
