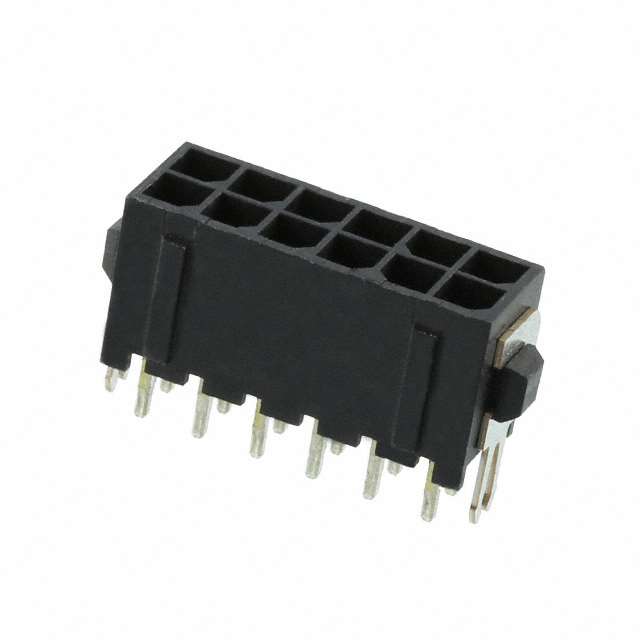

4-794681-2
Or copy the link below:
- Mfr.Part #
- 4-794681-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 3MM
- Stock
- 209
- In Stock ：
- 209
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Circuit Application :
- Power
- Number of Terminations :
- 12
- Max Voltage Rating (AC) :
- 250V
- Number of Power Positions :
- 12
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Pitch :
- 2.9972mm
- Number of Ports :
- 1
- Termination :
- Solder
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~105°C
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Tin, Gold
- Plating :
- Gold
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Number of Contacts :
- 12
- Insulation Color :
- Black
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- ELV :
- Compliant
- PCB Mounting Orientation :
- Vertical
- Contact Length - Post :
- 0.125 3.18mm
- Number of Positions Loaded :
- All
- Number of Positions :
- 12
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Fastening Type :
- Locking Ramp
- Color :
- Black
- Number of Rows :
- 2
- Factory Lead Time :
- 18 Weeks
- Published :
- 2008
- Voltage - Rated :
- 250V
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Pitch - Mating :
- 0.118 3.00mm
- Current Rating :
- 5A
- Min Operating Temperature :
- -40°C
- Series :
- Micro MATE-N-LOK
- Sealable :
- No
- VDE Tested :
- yes
- Max Operating Temperature :
- 221°C
- Plating Thickness :
- 380 nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyamide (PA), Nylon
- PCB Thickness :
- 1.6002mm
- Applications :
- GENERAL PURPOSE
- Contact Finish - Post :
- Tin
- Contact Retention :
- Without
- Feature :
- Board Lock
- Housing Material :
- Nylon
- Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Approval Agency :
- CSA
- Connector Type :
- Header
- Orientation :
- Vertical
- Contact Current Rating :
- 5A
- Packaging :
- Tray
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Radiation Hardening :
- No
- Operating Supply Voltage :
- 250V
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.364 9.25mm
- Length :
- 19mm
- Housing Color :
- Black
- Depth :
- 8.67mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Datasheets
- 4-794681-2
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.364 9.25mm Height
4-794681-2 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Micro MATE-N-LOK Series of products.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -40°C at all times.The device is equipped with 1 ports for the management of a variety of tasks.It is possible for the device to be used for the application General Purpose.A number of features make it more powerful because of its Board Lock feature.Through Hole mounts the part.12 terminations are present on the chip.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
4-794681-2 Features
12 basic kinds of terminations
Micro MATE-N-LOK series
4-794681-2 Applications
There are a lot of TE Connectivity AMP Connectors
4-794681-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
