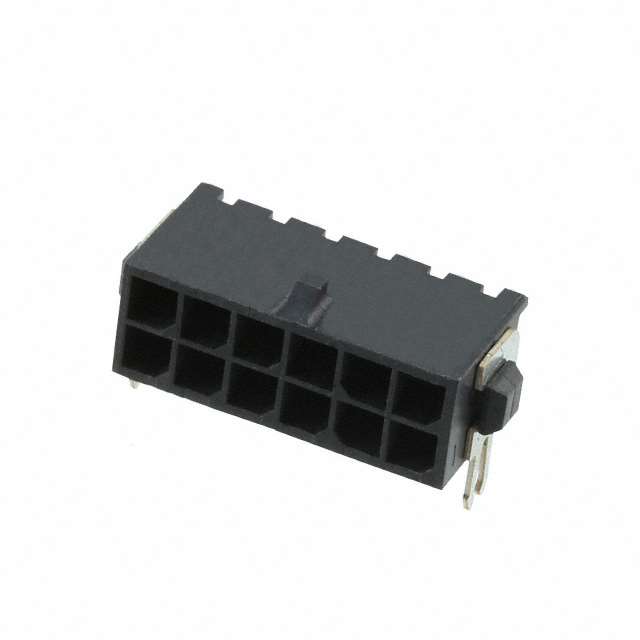

4-794679-2
Or copy the link below:
- Mfr.Part #
- 4-794679-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 3MM
- Stock
- 1,048
- In Stock ：
- 1,048
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.118 3.00mm
- IEC Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Max Voltage Rating (AC) :
- 250V
- Plating Thickness :
- 760 nm
- DIN Conformance :
- No
- Mixed Contacts :
- No
- RoHS Status :
- RoHS Compliant
- Depth :
- 11.92mm
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Connector Type :
- Header
- Current Rating :
- 5A
- Fastening Type :
- Locking Ramp
- ELV :
- Compliant
- Insulation Material :
- Polyamide (PA), Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Number of Conductors :
- ONE
- Total Number of Contacts :
- 12
- Number of Signal Positions :
- 0
- Reference Standard :
- UL, CSA
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Lead Length :
- 3.18mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Orientation :
- RIGHT ANGLE
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Style :
- Board to Cable/Wire
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- Sealable :
- No
- Insulation Color :
- Black
- Polarization Key :
- POLARIZED HOUSING
- Factory Lead Time :
- 17 Weeks
- Row Spacing - Mating :
- 0.118 (3.00mm)
- PCB Contact Pattern :
- RECTANGULAR
- Current Rating (Amps) :
- Varies by WireGAuge
- Published :
- 2008
- Operating Supply Voltage :
- 250V
- Feature :
- Board Lock
- Number Of PCB Rows :
- 2
- Contact Plating :
- Gold, Tin
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.290 7.37mm
- Applications :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Mount :
- Through Hole
- Housing Material :
- Nylon
- Number of Positions :
- 12
- Number of Ports :
- 1
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Gender :
- Male
- Contact Material :
- Brass
- Length :
- 22mm
- Circuit Application :
- Power
- Filter Feature :
- No
- Operating Temperature :
- -40°C~105°C
- Flammability Rating :
- UL94 V-0
- Series :
- Micro MATE-N-LOK
- Empty Shell :
- No
- Mounting Type :
- Through Hole, Right Angle
- Contact Retention :
- Without
- Packaging :
- Tray
- Datasheets
- 4-794679-2
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.290 7.37mm Height
4-794679-2 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the Micro MATE-N-LOK Series of products.The device is equipped with 1 ports for the management of a variety of tasks.It is possible for the device to be used for the application General Purpose.A number of features make it more powerful because of its Board Lock feature.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
4-794679-2 Features
Micro MATE-N-LOK series
4-794679-2 Applications
There are a lot of TE Connectivity AMP Connectors
4-794679-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
