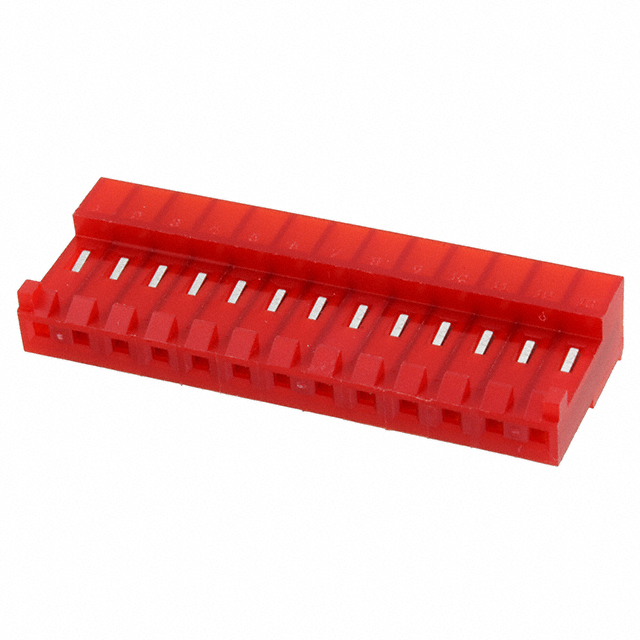

4-643819-3
Or copy the link below:
- Mfr.Part #
- 4-643819-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 13POS IDC 22AWG TIN
- Stock
- 400
- In Stock ：
- 400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Color :
- Red
- Radiation Hardening :
- No
- Published :
- 2008
- Termination :
- IDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Not Applicable
- Series :
- MTA-156
- Contact Plating :
- Tin
- Length :
- 51.51mm
- Contact Gender :
- FEMALE
- Contact Type :
- Female Socket
- Height :
- 9.02mm
- Contact Current Rating :
- 7A
- Sealable :
- No
- Plating :
- Tin
- Contact Finish :
- Tin
- Wire Gauge :
- 22 AWG
- Number of Rows :
- 1
- Circuit Application :
- Power
- Housing Color :
- Red
- Packaging :
- Bulk
- Voltage - Rated AC :
- 600V
- Mounting Type :
- Free Hanging (In-Line)
- Number of Power Positions :
- 13
- Wire Type :
- Discrete or Ribbon Cable
- Wire/Cable Type :
- Discrete
- Mount :
- Free Hanging
- Flammability Rating :
- UL94 V-2
- Operating Supply Voltage :
- 600V
- Plating Thickness :
- 80μm
- Pitch :
- 0.156 3.96mm
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Fastening Type :
- Locking Ramp
- Wire/Cable Gauge :
- 22 AWG
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Approval Agency :
- CSA
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 16 Weeks
- Max Operating Temperature :
- 221°C
- Insulation Diameter :
- 2.413 mm
- Feature :
- Closed End, Polarizing Key
- ELV :
- Compliant
- Shrouding :
- No
- Cable Termination :
- IDC
- Underplate Material :
- Nickel
- Number of Positions :
- 13
- Current Rating :
- 7A
- Number of Contacts :
- 13
- Contact Retention :
- With
- Min Operating Temperature :
- -67°C
- Connector Type :
- Receptacle
- Housing Material :
- Nylon
- Datasheets
- 4-643819-3
4-643819-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
